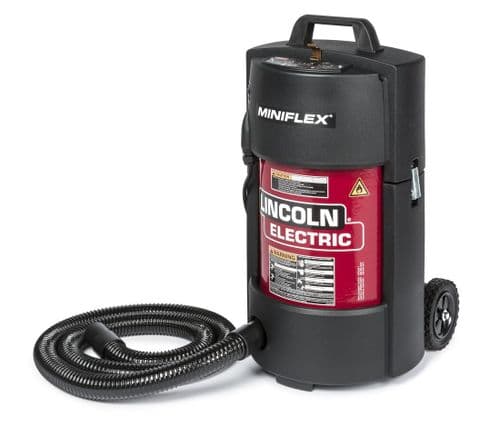

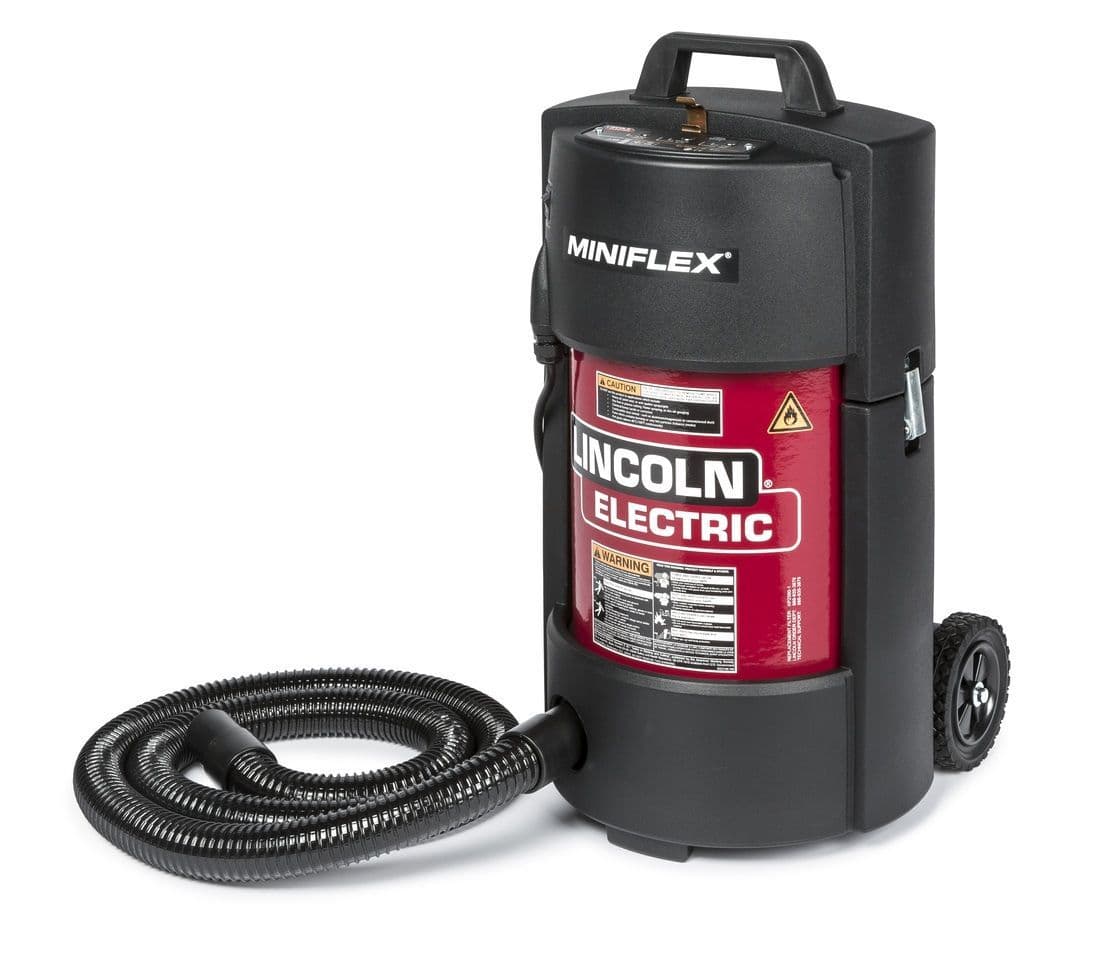

Miniflex High Vacuum Welding Fume Extraction Base Unit - 115 V - 1 Ph - 50 Hz

MINIFLEX is a portable high-vacuum extraction unit with filtration used for extracting welding fumes during maintenance operations or non-industrial production

Features

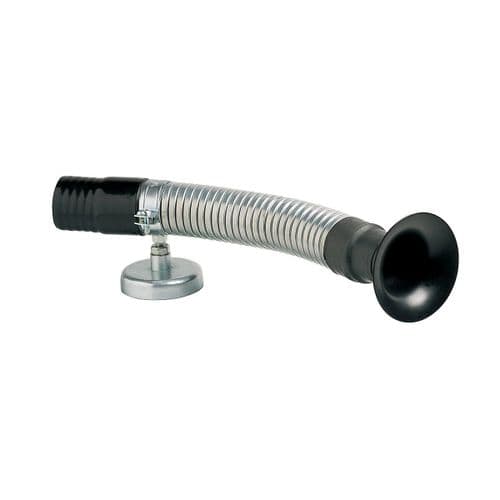

• Combined with a nearby capture nozzle or a fume extraction torch of 250 A maximum
• Maximum flow rate - 160 m³/h with 1 motor - 230 m³/h with 2 motors
• Diameter of connection to extraction: 45 mm.
• Fine cellulose filter, class H10 - Filter surface area 12 m²
• HEPA filter - Class H12
• Metal pre-filter

What's Included

• Base Unit
• Fine cellulose filter 12 m² Class H10
• Hepa filter class H12
• Hose Ø45 mm - 2.5 m length
