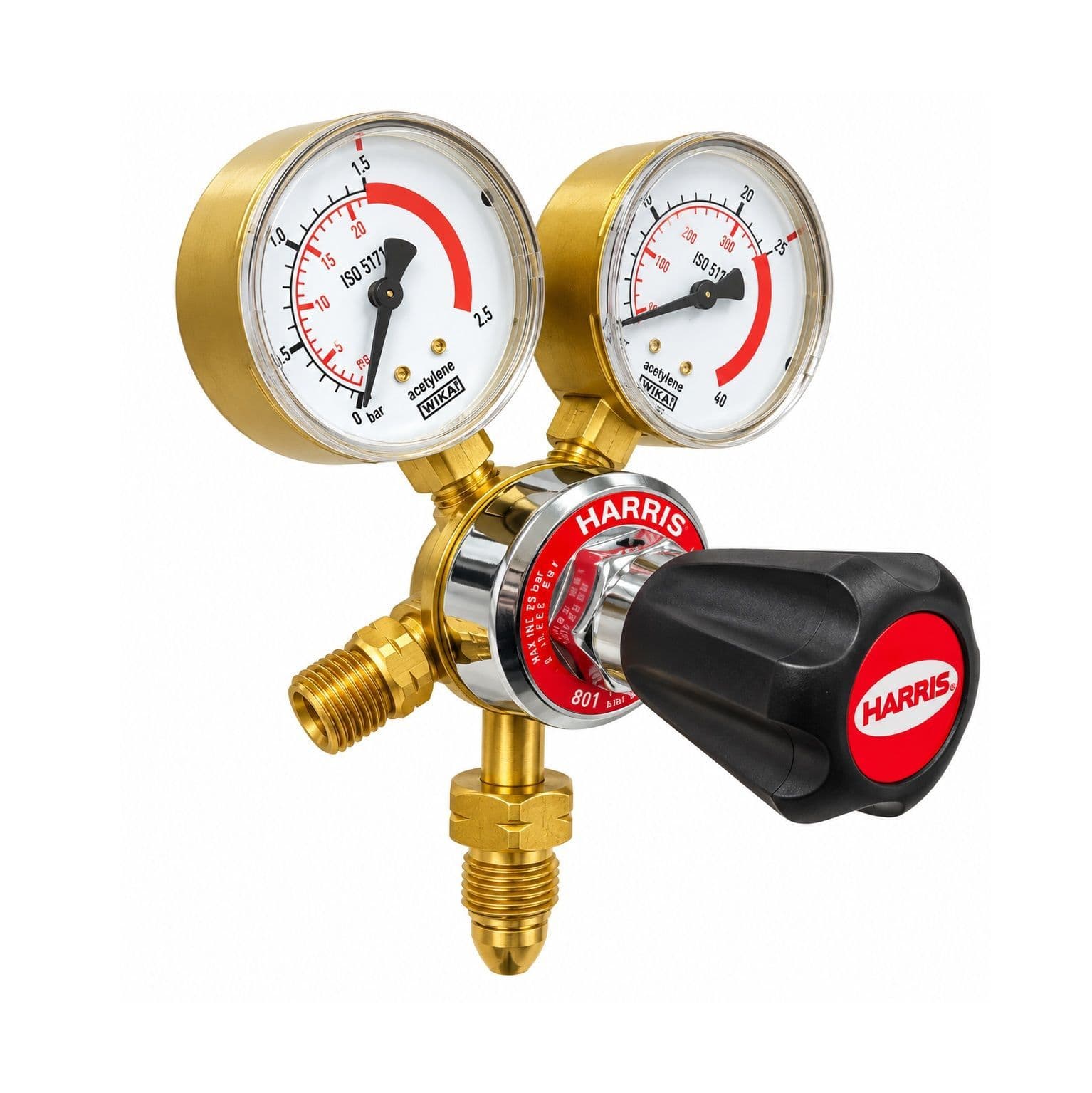

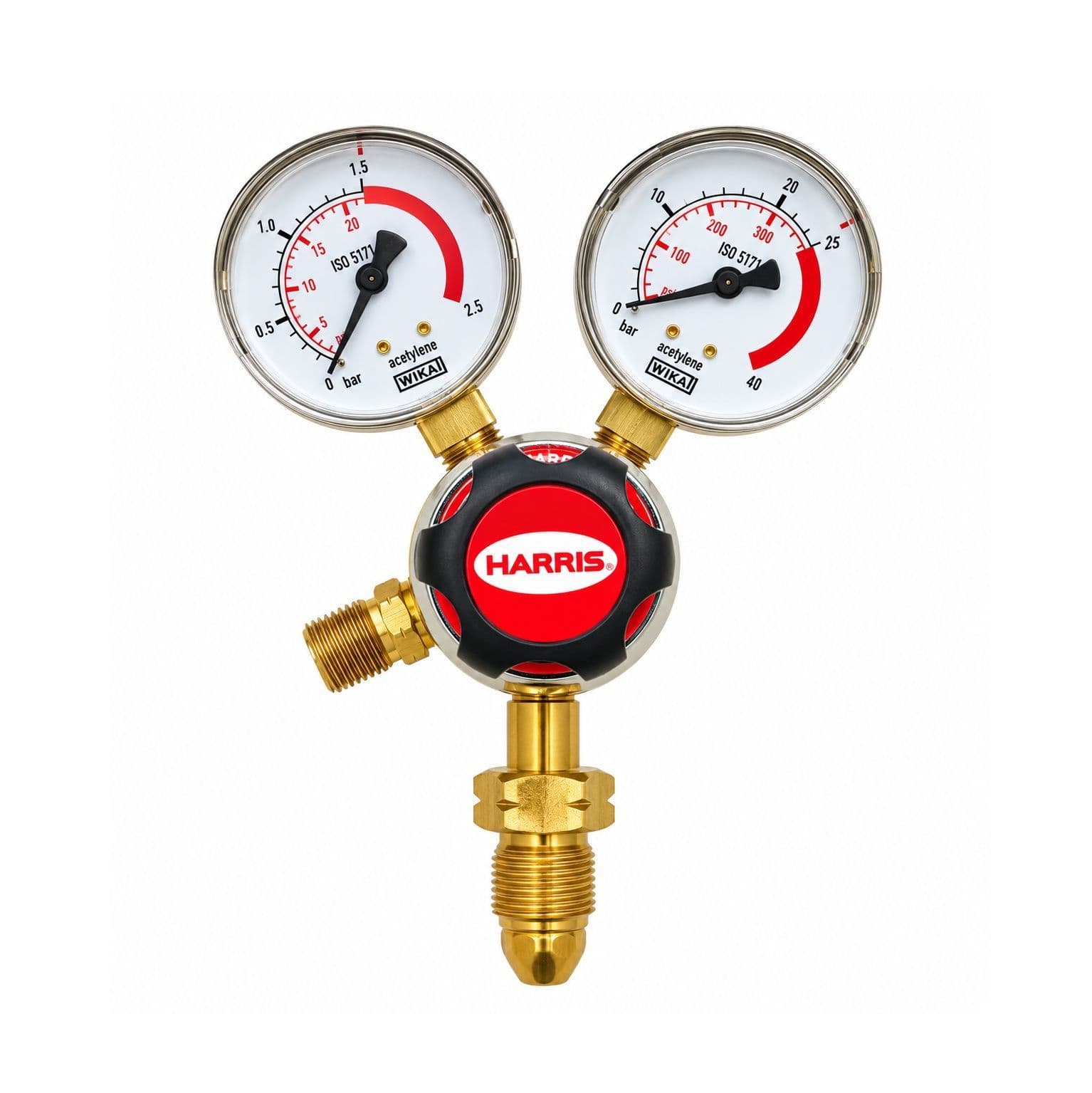

Harris 801 Acetylene Regulator – Professional Single-Stage, Two-Gauge Design
1.5 bar | 5/8" BSP LH cylinder connection | 3/8" BSP outlet | UK fitting only
Product code: 3001926 / H1011

Applications

• Ideal for medium-duty cutting, heating and welding applications.

Key Features

• Maximum inlet pressure of 25 bar.
• Delivers sufficient flow for cutting steel up to 300 mm thick.
• Provides smooth, precise pressure adjustment.
• One-piece encapsulated seat design with an internal filter and durable PTFE (Teflon) seat.
• Bottom-entry configuration.
• Standard model with a chrome-plated bonnet and gold-painted gauge case.

Technical Specifications

Gas: Acetylene
Maximum inlet pressure: 25 bar
Outlet pressure range: 0–1.5 bar
Maximum gas flow: 30 m³/h
Outlet pressure gauge range: 0–2.5 bar
Inlet pressure gauge range: 0–40 bar
