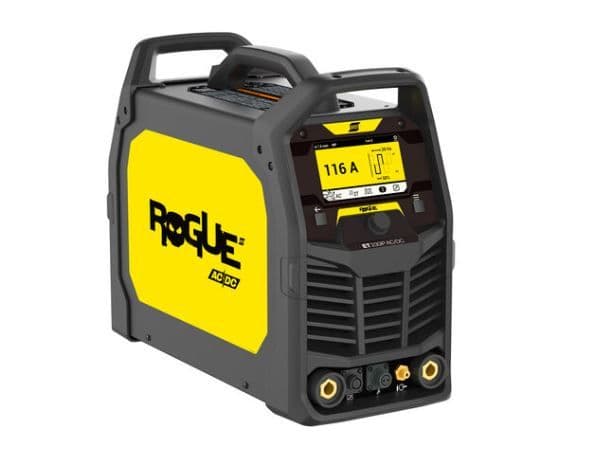

ESAB Rogue ET 230iP AC/DC 230V Air Cooled Package

Advanced features, delivered simply

Rogue ET 230iP AC/DC is a portable, high quality, professional AC/DC TIG welder with extended parameter options to excel at everyday aluminium, stainless steel and carbon steel welding.


An intuitive graphical user interface with a 5-inch colour display brings new functionality for quick and easy adjustments. The machine can tackle a wide range of thicknesses including very thin plates.


Customisable wave shapes (square, soft square, sinusoidal, triangle) enables optimised heat input for high penetration on thicker metals and low distortion on thin sheets. Pulsing capabilities in both DC and AC TIG offer enhanced weld puddle control allowing the welder to further tailor the arc for multiple applications. TIG arc starts are crafted for optimum performance based on selected tungsten electrode diameter and type.
Durable housing design combines robustness and functionality with multiple lift points for easy manoeuvrability in both workshop and field applications.

• Various AC/DC waveforms (square, soft square, sinusoidal, triangle) for optimal energy transfer
• TIG AC and DC pulse up to 200 Hz for increased control of heat input and weld pool.
• Built-in PFC circuit ensures a stable arc, even with extra-long input cables, up to 100 m
• New CoolMini3 water-cooler for lightweight TIG torches
• High visibility intuitive 5-inch colour screen interface reduces downtime and improves accuracy
• Dual-current mode switches between two output current levels to control the heat input and the size of the weld pool
• Easy access to saved jobs by torch trigger
• Modular system with tool-less connection to trolley
• New Exeor TIG torch included
