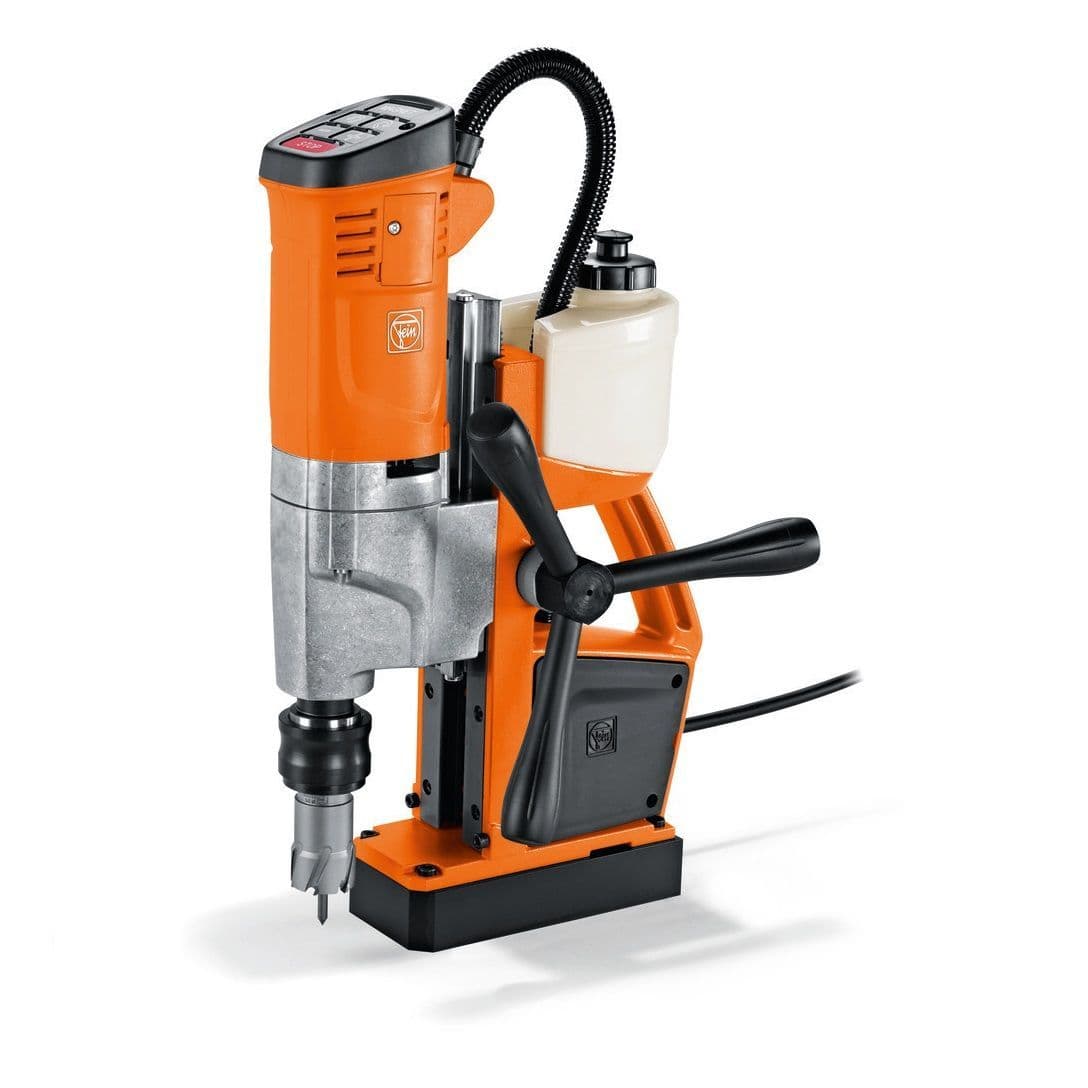

FEIN Magnetic Drill KBU 35 QW 110V

Universal magnetic core drill for up to 35 mm

Small and powerful single-speed universal magnetic core drill with clockwise/anti-clockwise operation and maximum functionality for flexible working on the construction site.

Details

• Extremely low-wear tool design with swivel-mounted motor cable protection hose for tough use in industry and manual trades.
• Perfect power-to-weight ratio thanks to compact, weight-optimised design and FEIN 1 100 W high-power motor with tacho electronics for high speed stability for reliable and economical working.
• With clockwise/anti-clockwise operation, electronic speed setting and a 260 mm stroke range, this is a universal tool for core drilling, twist drilling, tapping, countersinking and reaming.
• Small and lightweight.
• Simple operating concept avoids mix-ups and can be clearly seen by the user.
• Convenient magnetic holding force display helps the user to reliably position the tool.
• High magnetic holding force.
• Tilt sensor.
• Additional magnetic switch in the drill jig.
• Integrated coolant tank delivers long core drill bit lives.
• Feed handwheel can be moved from one side to the other.
• Speed saving "memory function".
• Personal safety switch.

Technical data

Technical data

Input

1,010 W

Output

550 W

Speed, full load

130 - 520 rpm

Carbide core drill bit max. Ø

35 mm

HSS core drill max. Ø

35 mm

Core drill, drilling depth max.

50 mm

Twist drill max. Ø

16 mm

Tapping

M 14

Countersinking max. Ø

31 mm

Reaming max. Ø

16 mm

Core drill holder

3/4 in Weldon

Changing the core bit

tool-free

Stroke

135 mm

Total stroke range

260 mm

Magnetic holding power

10,000 N

Magnetic foot dimensions

175 x 80 mm

Cable with plug

4 m

Weight according to EPTA

10.70 kg
