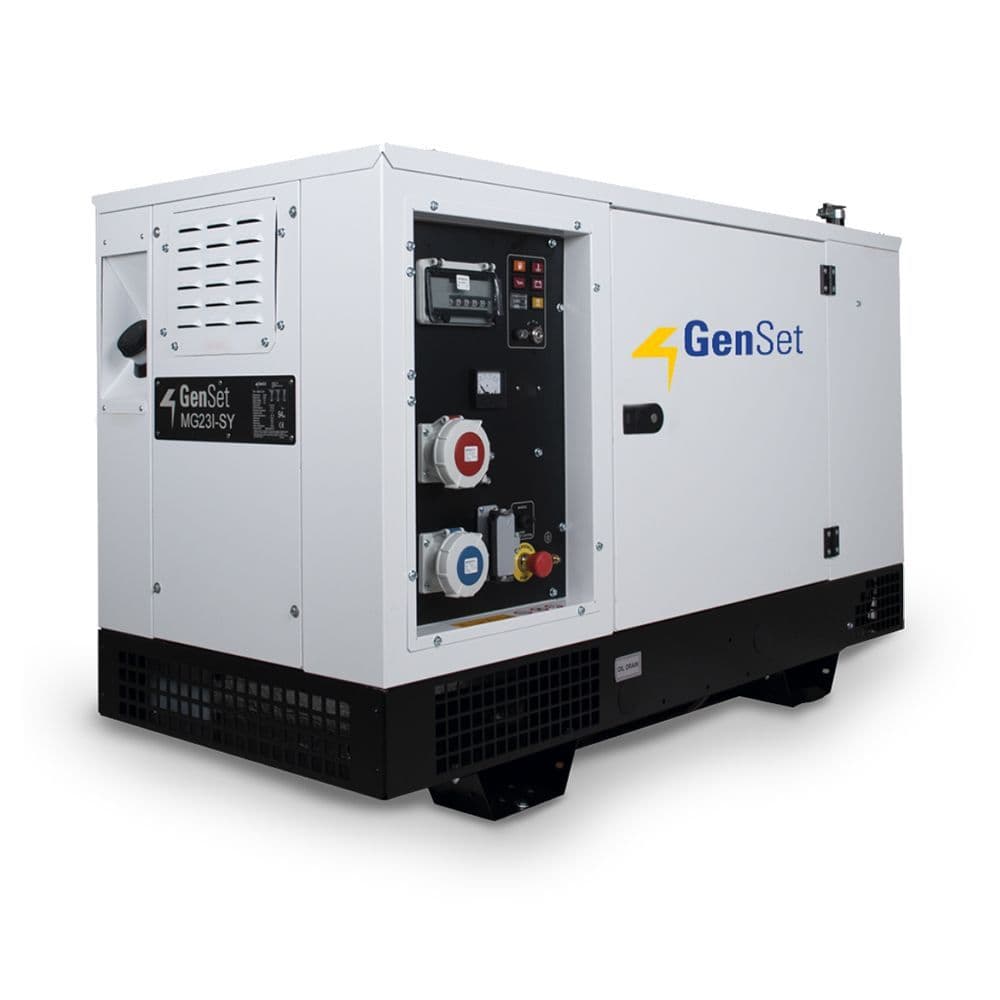

GenSet 16 kVA Power Generator 400V/230V 1500rpm Silenced Yanmar 3TNV88 Diesel Engine (MG 16 I-SY)

Minimal Maintenance, Compact Design, Long Running Time

This silenced generator is a robust and compact power solution, ideal for regular site use and frequent handling. Powered by a reliable Yanmar 1500 RPM engine, it is designed for efficient performance, reduced maintenance, and dependable operation.

Available with an oversized fuel tank and either a manual or automatic control panel, this generator is well suited to a wide range of commercial, industrial, and site applications.

Key features include an automatic engine protection shutdown system, starting battery, emergency stop button, hourmeter, voltmeter, fuel level indicator, earth leakage circuit breaker, AMF-ATS panel connector, particulate filter, engine oil drain pipe, forklift pockets, and a central lifting hook for easy transport and positioning.

Features:

• Automatic engine protection shutdown system
• Warning lights for battery charger failure, high water temperature, low fuel level, and low oil pressure
• Starting battery
• Emergency stop button
• Hourmeter
• Voltmeter
• Visual fuel level indicator
• Power output protection
• Earth leakage circuit breaker
• Connector for AMF-ATS panel and remote control
• Particulate filter
• Engine oil drain pipe
• Forklift pockets
• Central lifting hook
• 1 x 32A 230V single-phase socket
• 1 x 32A 400V three-phase socket

Noise Level (LWA) 91 (66dB a 7m)
AC Generator 50Hz Synchronous
Three Phase Max. Power 16kVA - 400V
Single Phase Max. Power 5.3kVA - 230V
Power Factor Cos Ф 0.8
Yanmar Engine 3 TNV 88C
Fuel Diesel
No. Cylinders 3
Power 18.1HP (13.5kWm)
Displacement 1642cm3
Cooling System Water
Starting System Electric
Fuel Tank Capacity 40l
Fuel Consumption @ 75% 2.7l/h
Insulation Class H
Ambient Temperature 40oC
Altitude 1000m
Degree of Protection IP23
Dimensions (LxWxH) 1650 x 700 x 1045mm
Dry Weight 445Kg
