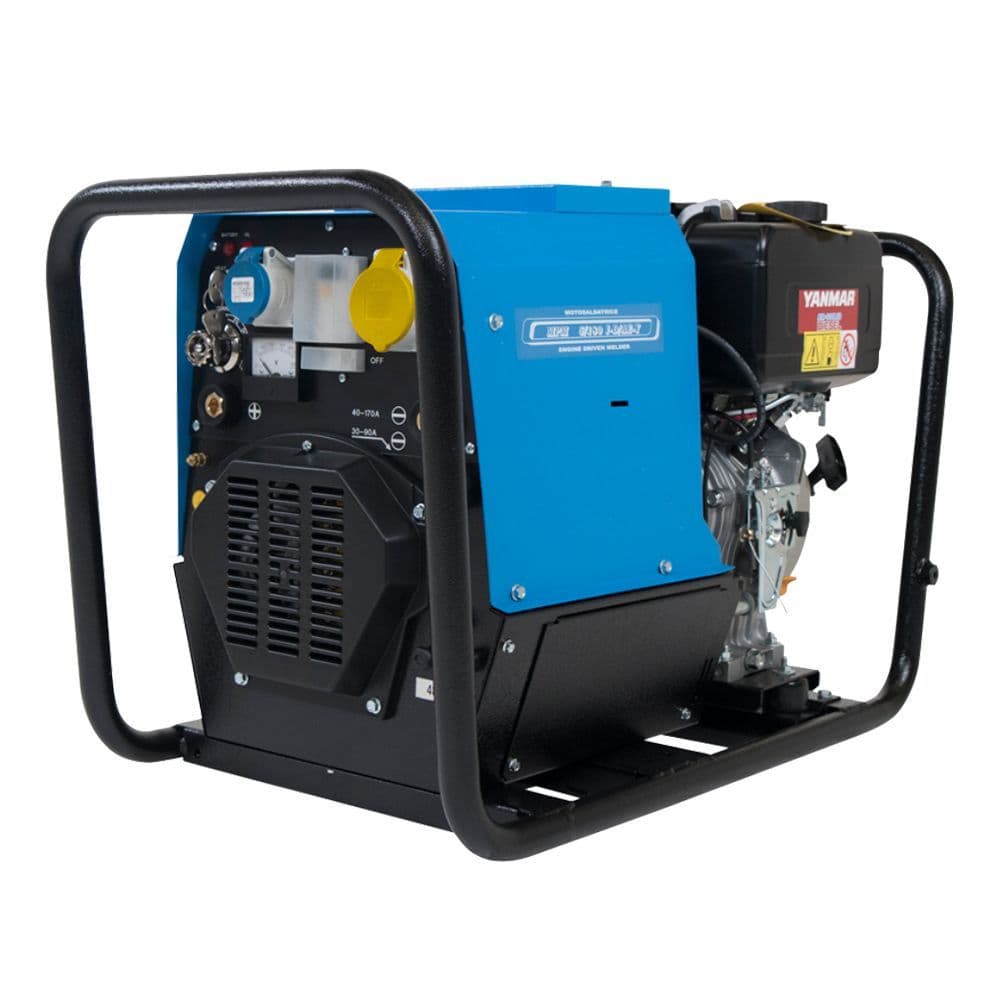

GenSet Engine Driven Welder Generator – 170A Diesel Welder Generator

The GenSet engine driven welder generator is a compact, lightweight and practical solution for on-site welding and power generation. Powered by a reliable 3000 RPM Yanmar diesel engine, this machine is designed for professional use where dependable welding performance and portable power are required.

Fitted with an asynchronous alternator, it delivers enhanced welding current quality with a clean, distortion-free waveform for consistent welding results. Like all GenSet engine driven welders, it can be used as both a generator and welder at the same time, making it a versatile choice for workshops, construction sites, farms, maintenance teams and mobile welding applications.

Key Features

• Compact and lightweight portable engine driven welder generator
• Powered by a 3000 RPM Yanmar diesel engine
• Suitable for Shielded Metal Arc Welding (SMAW)
• Can be used as a welder and generator simultaneously
• Asynchronous alternator for improved welding current quality
• Clean, distortion-free waveform for smooth welding performance
• Simple, smart and practical design for easy operation
• Electric starting system with starting battery
• Includes voltmeter and output protection features
• Fitted with 230V and 110V single phase sockets

Welding Output

• DC welding with electronic current regulation
• Duty cycle at 60%: 140A / 26V
• Output range: 40A – 170A
• Open circuit voltage: 90V
• Maximum welding rod size: 4mm

Generator Output

• AC generator: 50Hz asynchronous
• Single phase maximum power: 4kVA – 230V
• Single phase maximum power: 2kVA – 110V
• Power factor: Cos φ 0.8
• 1 x 16A 230V single phase socket
• 1 x 16A 110V single phase socket

Engine Specification

• Engine: Yanmar L100 V
• Fuel: Diesel
• Number of cylinders: 1
• Power: 8.8HP / 6.5kWm
• Displacement: 435cm³
• Cooling system: Air cooled
• Starting system: Electric
• Fuel tank capacity: 5.4 litres
• Fuel consumption at 75% load: 1.5 litres per hour

General Specification

• Warning lights for battery charger failure and low oil pressure
• Power output protection
• Earth leakage circuit breaker (ELCB)
• Noise level: LWA 99 / 74dB at 7m
• Insulation class: H
• Ambient temperature: 40°C
• Altitude: 1000m
• Degree of protection: IP23
• Dimensions (L x W x H): 950 x 480 x 574mm
• Dry weight: 148kg

Optional Accessories

• WCS35-5LDT welding cable set, 35mm x 5mtr
• M400E/CP3550
• GS-133210/20 welding remote control
• GS-1400/M 2 wheel trolley with handles
