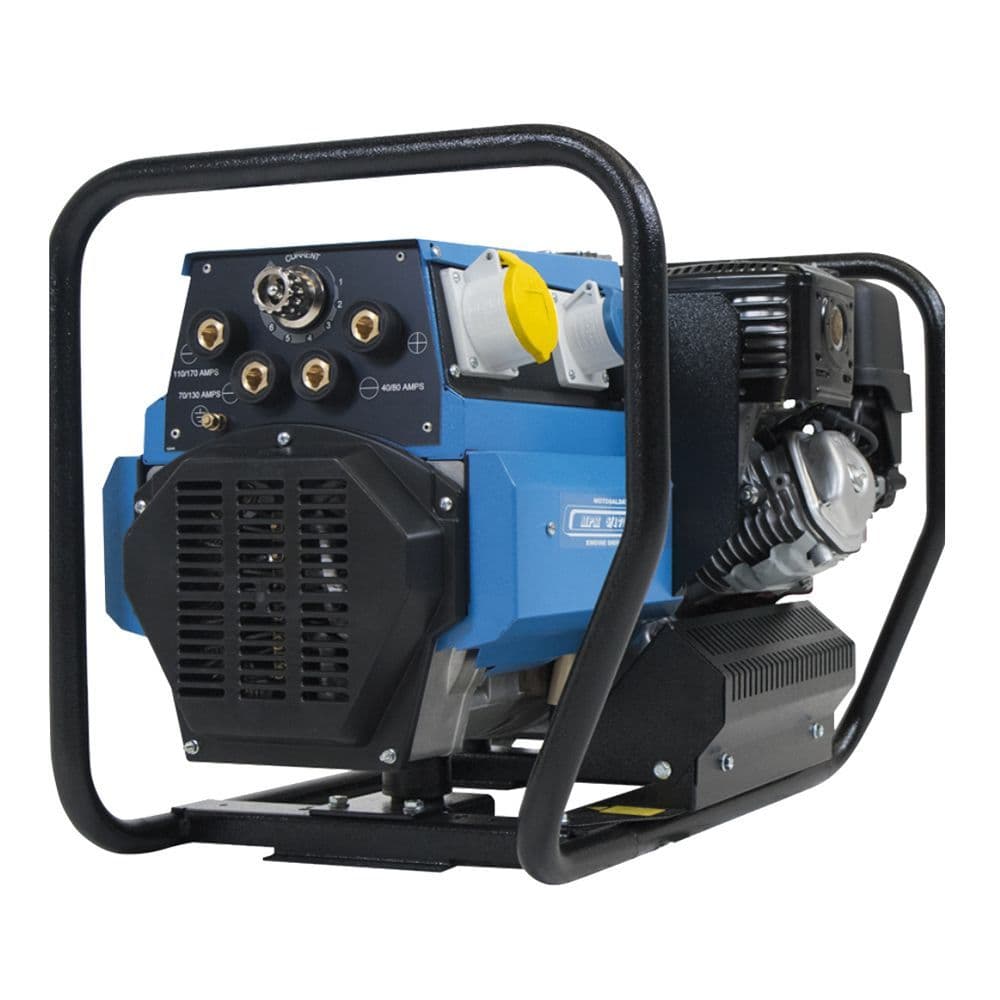

GenSet 200A Petrol Engine Driven Welder Generator Honda GX390 Engine (MPM 5/200 I-EL/H)

Compact, lightweight and easy to use, this portable engine-driven welder is ideal for reliable on-site welding and power generation. Powered by a Stage 5, 3000 RPM Honda engine, it features an asynchronous alternator that delivers a clean, distortion-free waveform and high-quality welding current. Like all GenSet engine-driven welders, it can be used as both a generator and welder at the same time, offering practical performance in a simple, smart design.

Shielded Metal Arc Welding (SMAW)

Designed for reliable and versatile welding performance, this machine is suitable for use with cellulosic electrodes and offers smooth, stepless current adjustment for precise control. It includes arc force control, a voltmeter, and a remote control socket for added flexibility on site. Built-in safety and protection features include low oil shutdown, power output protection, and an earth leakage circuit breaker (ELCB). For convenient auxiliary power, it is fitted with both a 16A 230V single-phase socket and a 16A 110V single-phase socket.

• Noise Level (LWA) 96 (71dB a 7m)
• AC Generator 50Hz Asynchronous
• Single Phase Max. Power 2kW - 110V
• Single Phase Max. Power 3.6kW - 230V
• Power Factor Cos Ф 0.8
• DC Welding Electronic current regulation
• Duty Cycle @ 60% 150A - 26V
• Output Range 30A - 200A
• Open Circuit Voltage 70V
• Max Welding Rod 4mm
• Honda Engine GX 390 3000RPM
• Fuel Petrol
• No. Cylinders 1
• Power 11HP (8.2kWm)
• Displacement 390cm3
• Cooling System Air
• Starting System Recoil
• Fuel Tank Capacity 6.1l
• Fuel Consumption @ 75% 3.3l/h
• Insulation Class H
• Ambient Temperature 40oC
• Altitude 1000m
• Degree of Protection IP23
• Dimensions (LxWxH) 720 x 480 x 515mm
• Dry Weight 96Kg
