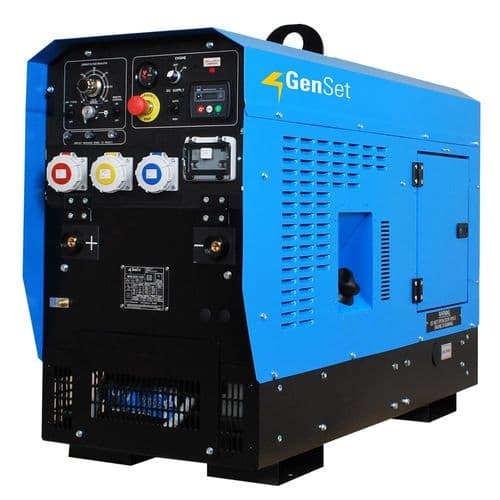

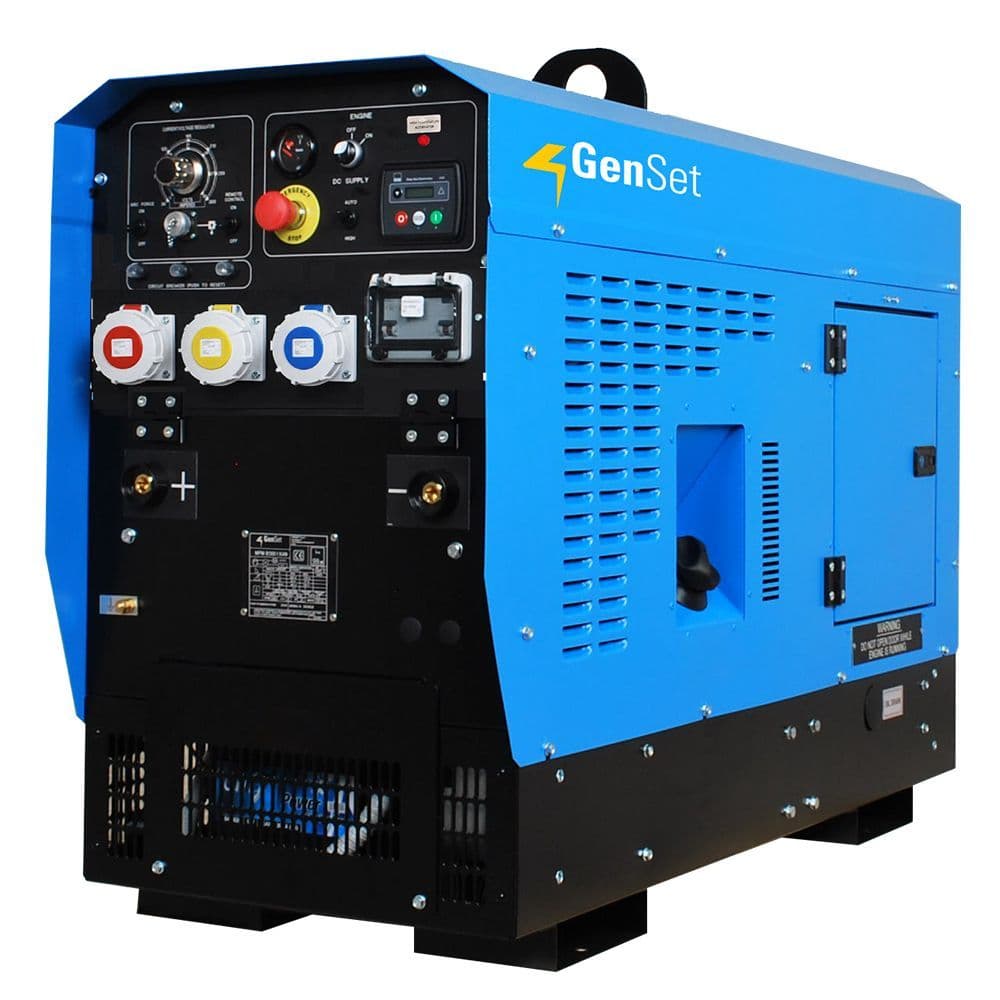

GenSet 300A Diesel Engine Driven Welder Generator Kubota D722 Engine (MPM 8/300 I-K CC/CV)

Compact, durable and easy to move, this engine-driven welder is designed for reliable performance in demanding site conditions. Featuring forklift pockets and a convenient central lifting hook, it is ideal for frequent relocation. Powered by a 3000 RPM Kubota engine and equipped with on-board control logic, it is ready for remote control operation. An asynchronous alternator delivers high-quality welding current and a clean, distortion-free waveform for consistent, dependable results.

Shielded Metal Arc Welding (SMAW)
CV MIG (GMAW)

Built for dependable site performance, this engine-driven welder generator offers practical features for safe, efficient operation. It includes a forced arc selector, remote control socket, and a digital display showing key parameters such as generator voltage, battery voltage, frequency, and running hours. Automatic engine shutdown provides added protection, with display alarms for low oil pressure, high coolant temperature, voltage issues, and frequency faults. Additional features include a high alternator temperature warning light, starter battery, automatic return to idle when no load is detected, emergency stop button, and power output protection. For versatile power supply, it is fitted with 400V three-phase, 230V single-phase, and 110V single-phase sockets, plus a central lifting hook for easy handling on site.

• Noise Level (LWA) 99 (74dB a 7m)
• AC Generator 50Hz Asynchronous
• Three Phase Max. Power 8kVA - 400V
• Single Phase Max. Power 4.6kVA - 230V
• Single Phase Max. Power 2.7kVA - 110V
• Power Factor Cos Ф 0.8
• DC Welding Electronic current regulation
• Duty Cycle @ 60% 270A - 31V
• Output Range 30A - 300A
• Open Circuit Voltage 70V
• Max Welding Rod 6mm
• Kubota Engine D722
• Fuel Diesel
• No. Cylinders 3
• Power 19HP (14kWm)
• Displacement 719cm3
• Cooling System Water
• Starting System Electric
• Fuel Tank Capacity 30l
• Fuel Consumption @ 75% 3.3l/h
• Insulation Class H
• Ambient Temperature 40oC
• Altitude 1000m
• Degree of Protection IP23
• Dimensions (LxWxH) 1360 x 530 x 870mm
• Dry Weight 345Kg
