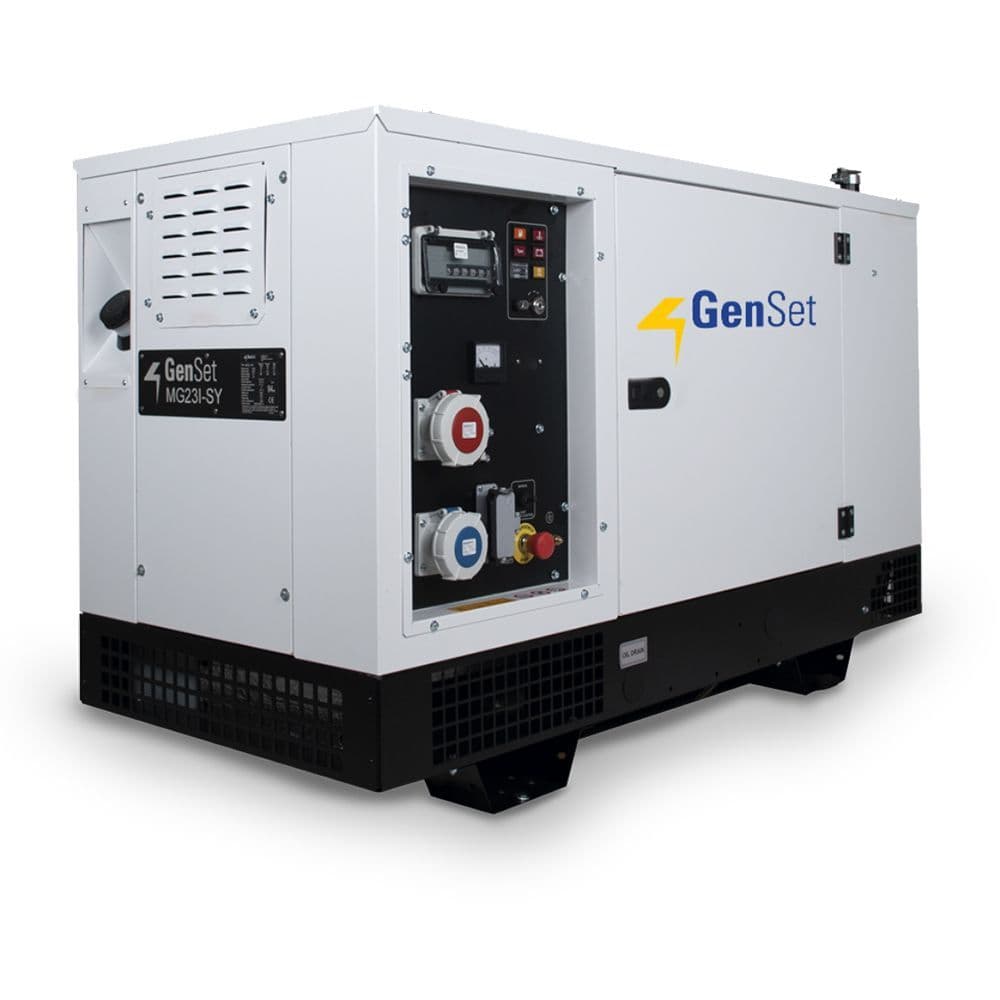

GenSet 33 kVA Power Generator 400V/230V 1500rpm (MG 33 I-SY Stage 5)

High Output Silenced Diesel Generator with Yanmar 1500 RPM Engine

The largest model in the range, this silenced diesel generator is built to deliver high power output, dependable performance, and long running times. Powered by a robust Yanmar 1500 RPM engine, it is designed for demanding site, commercial, and industrial applications where reliable power is essential.

Its compact and durable construction makes it practical for regular use and easy handling on site. The generator includes an automatic engine protection shutdown system with warning lights for battery charger failure, high water temperature, low fuel level, and low oil pressure, helping to protect the unit during operation.

For straightforward monitoring and safe use, the generator is fitted with a starting battery, emergency stop button, hourmeter, voltmeter, fuel level indicator, power output protection, and an earth leakage circuit breaker. It also includes a connector for an AMF-ATS panel and remote control, along with a particulate filter, engine oil drain pipe, forklift pockets, and a central lifting hook for easier maintenance, movement, and positioning.

Features:

• Yanmar 1500 RPM engine
• Largest model in the range
• High output and robust construction
• Compact silenced design
• Long running time
• Automatic engine protection shutdown system
• Warning lights for battery charger failure, high water temperature, low fuel level, and low oil pressure
• Starting battery
• Emergency stop button
• Hourmeter
• Voltmeter
• Visual fuel level indicator
• Power output protection
• Earth leakage circuit breaker (ELCB)
• Connector for AMF-ATS panel and remote control
• Particulate filter
• Engine oil drain pipe
• Forklift pockets
• Central lifting hook
• 1 x 16A 230V single-phase socket
• 1 x 32A 230V single-phase socket
• 1 x 32A 400V three-phase socket
• 1 x 63A 400V three-phase socket

Noise Level (LWA) 94 (69dB a 7m)
AC Generator 50Hz Synchronous
Three Phase Max. Power 33kVA - 400V
Single Phase Max. Power 11kVA - 230V
Power Factor Cos Ф 0.8
Yanmar Engine 4 TNV 98C
Fuel Diesel
No. Cylinders 4
Power 46.1HP (34.4kWm)
Displacement 3319cm3
Cooling System Water
Starting System Electric
Fuel Tank Capacity 40l
Fuel Consumption @ 75% 6.4l/h
Insulation Class H
Ambient Temperature 40oC
Altitude 1000m
Degree of Protection IP23
Dimensions (LxWxH) 1900 x 910 x 1164mm
Dry Weight 690Kg
