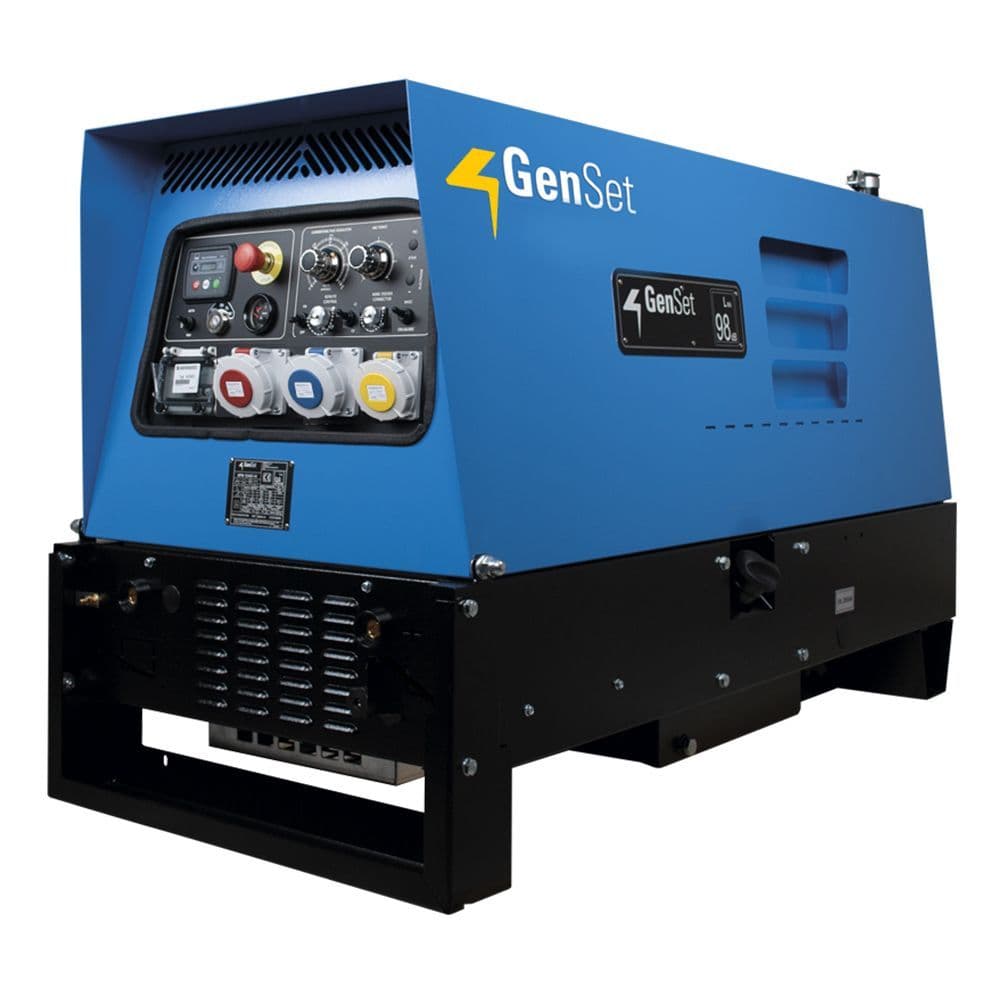

GenSet 400A Diesel Engine Driven Welder Generator Yanmar 3TNV80 Engine (MPM 16/450 I-Y CC/CV)

Compact Engine Driven Welder with Yanmar Power

This compact and durable engine driven welder is designed for easy handling and dependable performance across site, workshop, industrial and maintenance applications. Built with practical transport features including a central top lifting hook and forklift pockets, it is ideal for professional users who need a robust and portable welding and power solution.

Powered by a reliable 3000 RPM Yanmar 3TNV80 engine, this machine is equipped with a digital control panel for monitoring both mechanical and electrical data. The asynchronous alternator helps deliver improved welding process quality, producing a clean and stable waveform for smoother, more consistent welding performance.

Designed to work simultaneously as both a welder and generator, this unit offers excellent versatility for demanding environments. It supports Shielded Metal Arc Welding and CV MIG welding, with arc force control and a remote control socket for added flexibility.

For safety and reliability, the digital controller provides full monitoring of key generator parameters including generator voltage, battery voltage, frequency and running hours. The automatic engine protection shutdown system helps protect the machine in the event of failure to start, low oil pressure, high coolant temperature, low fuel level, over/under voltage or over/under frequency.

Key Features:

• Compact and durable engine driven welder
• Reliable 3000 RPM Yanmar 3TNV80 engine
• Designed for easy handling and frequent site use
• Central top lifting hook
• Forklift pockets / forklift-ready base
• Digital controller for mechanical and electrical monitoring
• Designed to operate as both welder and generator
• Shielded Metal Arc Welding (SMAW)
• CV MIG welding (GMAW)
• Arc force control
• Remote control socket
• Asynchronous alternator for improved welding quality
• Clean and stable waveform
• Full generator parameter monitoring
• Displays generator voltage, battery voltage, frequency and hourmeter
• Automatic engine protection shutdown system
• Protection for failure to start, low oil pressure and high coolant temperature
• Protection for low fuel level, over/under voltage and over/under frequency
• Fuel level gauge
• Starting battery
• Emergency stop button
• Automatic idle device when no load is connected
• 1 x 32A 110V single phase socket
• 1 x 32A 230V single phase socket
• 1 x 32A 400V three phase socket
• Earth leakage circuit breaker (ELCB)
• Power output protections
• Engine oil drain pipe
