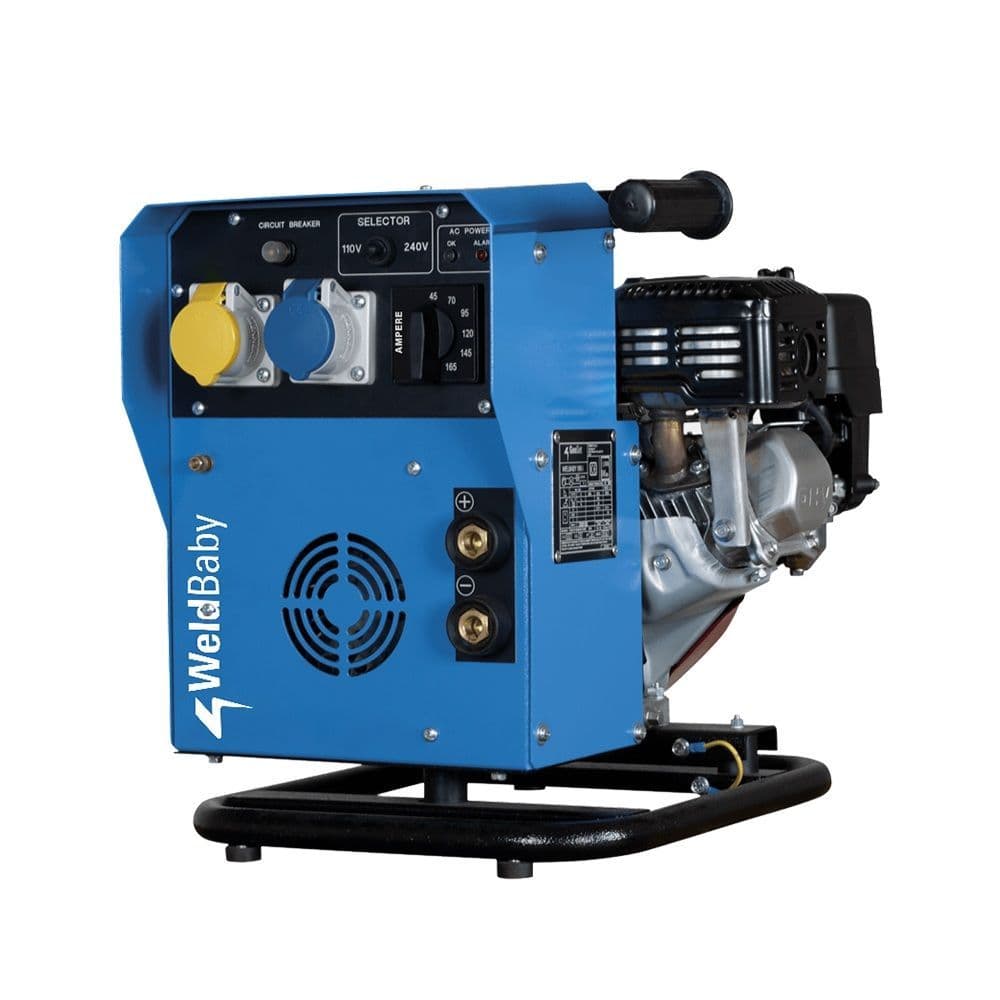

GenSet Weld Baby 180 Petrol Engine Driven Welder Generator – Honda GX200 Engine

The GenSet Weld Baby 180 is a compact and lightweight petrol engine driven welder generator, ideal for portable welding and on-site power applications. Powered by a Stage V Honda GX200 engine running at 4000 RPM, it delivers reliable performance in a practical, easy-to-use design.

Designed for Shielded Metal Arc Welding (SMAW), this portable welder generator can be used as both a generator and welder simultaneously. Its simple and smart layout makes it a dependable choice for mobile engineers, site work, maintenance teams, agricultural use and general welding applications where portability is essential.

Key Features

• Compact and lightweight portable engine driven welder generator
• Powered by a Stage V Honda GX200 petrol engine
• Designed for Shielded Metal Arc Welding (SMAW)
• Can be used as both a generator and welder at the same time
• Simple and smart design for practical, easy operation
• Low oil shutdown device for engine protection
• Automatic idle device when no load is connected
• Power output protection
• 1 x 16A 110V single phase socket
• 1 x 16A 230V single phase socket
• Optional AC inverter available

Welding Output

• DC welding with electromechanical current regulation
• Duty cycle at 60%: 150A / 24V
• Output range: 40A – 150A
• Open circuit voltage: 70V
• Maximum welding rod size: 3.25mm

Generator Output

• Generator: 50Hz PMG
• Single phase maximum power: 1kVA – 230V
• Single phase maximum power: 0.5kVA – 110V
• Power factor: Cos φ 1
• 1 x 16A 230V single phase socket
• 1 x 16A 110V single phase socket

Engine Specification

• Engine: Honda GX200
• Engine speed: 4000 RPM
• Fuel: Petrol
• Number of cylinders: 1
• Power: 5.1HP / 3.8kWm
• Displacement: 196cm³
• Cooling system: Air cooled
• Starting system: Recoil
• Fuel tank capacity: 3.1 litres
• Fuel consumption at 75% load: 1.5 litres per hour

General Specification

• Noise level: LWA 98 / 73dB at 7m
• Insulation class: H
• Ambient temperature: 40°C
• Altitude: 1000m
• Degree of protection: IP23
• Dimensions (L x W x H): 510 x 440 x 460mm
• Dry weight: 35kg
