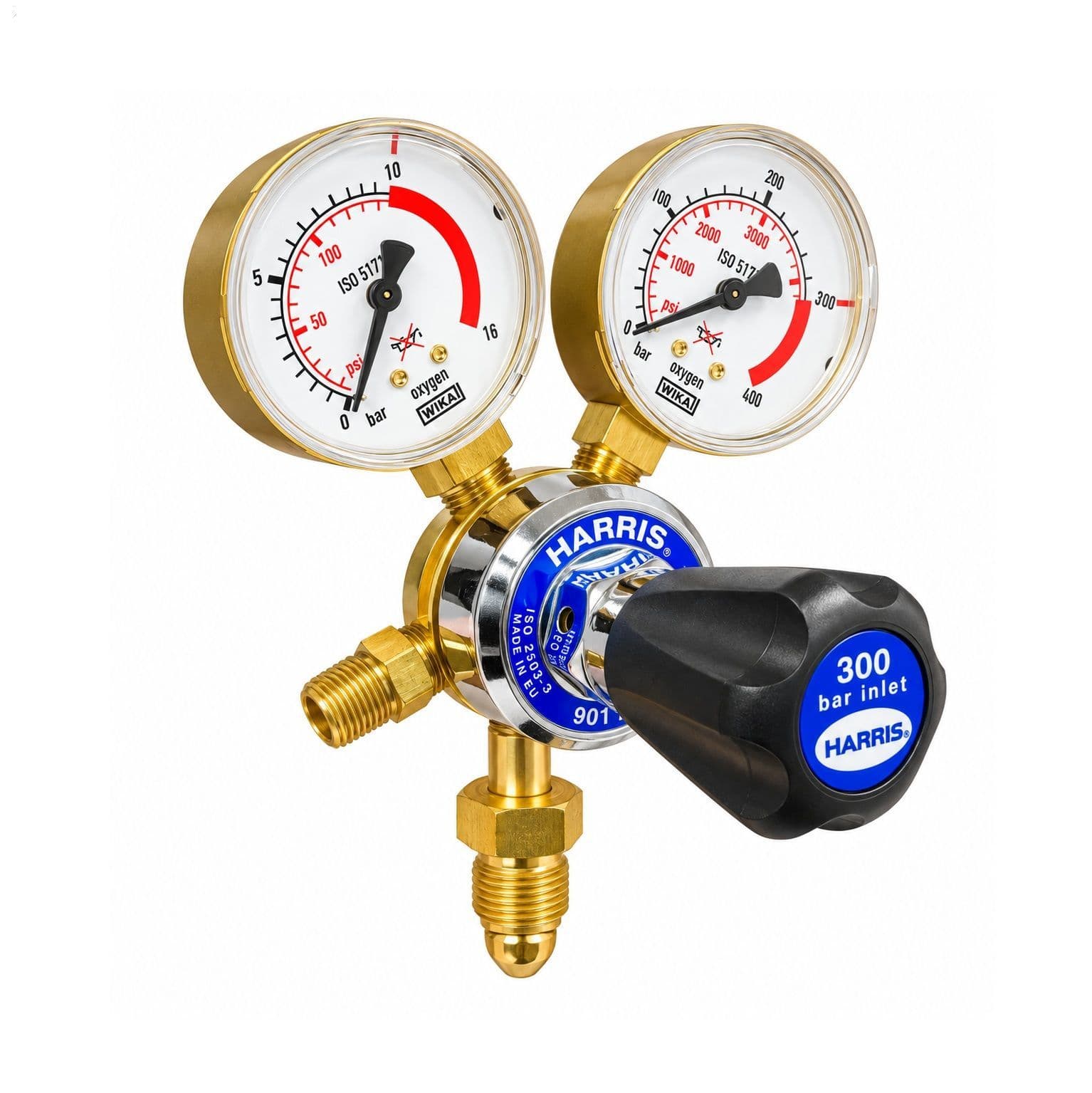

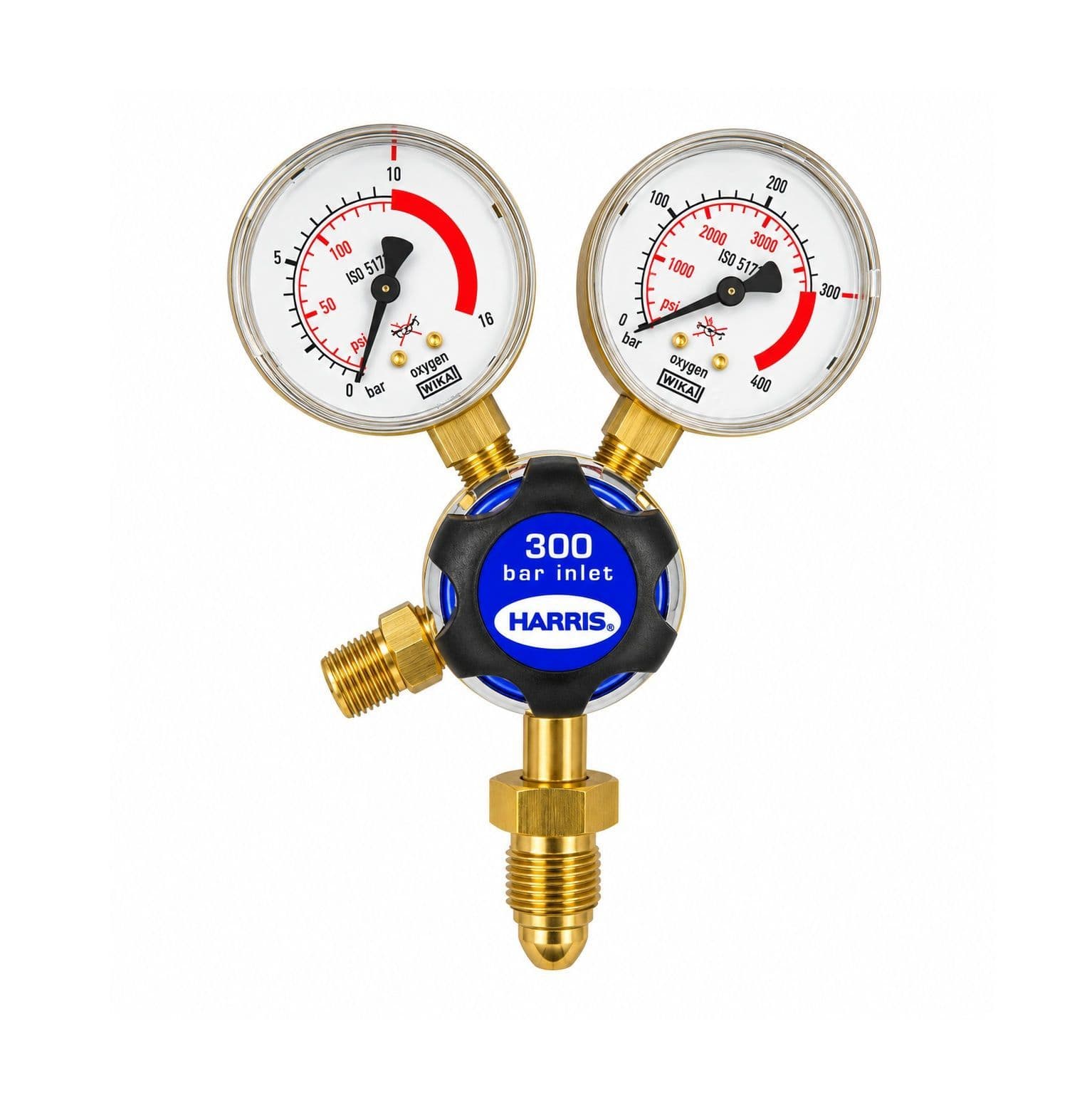

Harris 801B Oxygen Regulator – Professional Single-Stage, Two-Gauge Design
10 bar | 5/8" BSP RH cylinder connection | 3/8" BSP outlet | UK fitting only
Product codes: 901ED1OX1590 | 3002185 H1104

Applications

• Ideal for medium-duty cutting, heating and welding applications.

Key Features

• Maximum inlet pressure of 230 bar.
• Delivers sufficient flow for cutting steel up to 300 mm thick.
• Provides smooth, precise pressure adjustment.
• One-piece encapsulated seat design with an internal filter and durable PTFE (Teflon) seat.
• Side-inlet connection.
• Standard version with a chrome-plated bonnet and gold-painted gauge case.
• The “B” version is fitted with a black bonnet and black gauge case.

Product Details

Gas: Oxygen
Maximum inlet pressure: 230 bar
Delivery pressure range: 0–10 bar
Maximum gas flow: 155 m³/h
Delivery pressure gauge range: 0–16 bar
Supply pressure gauge range: 0–315 bar
