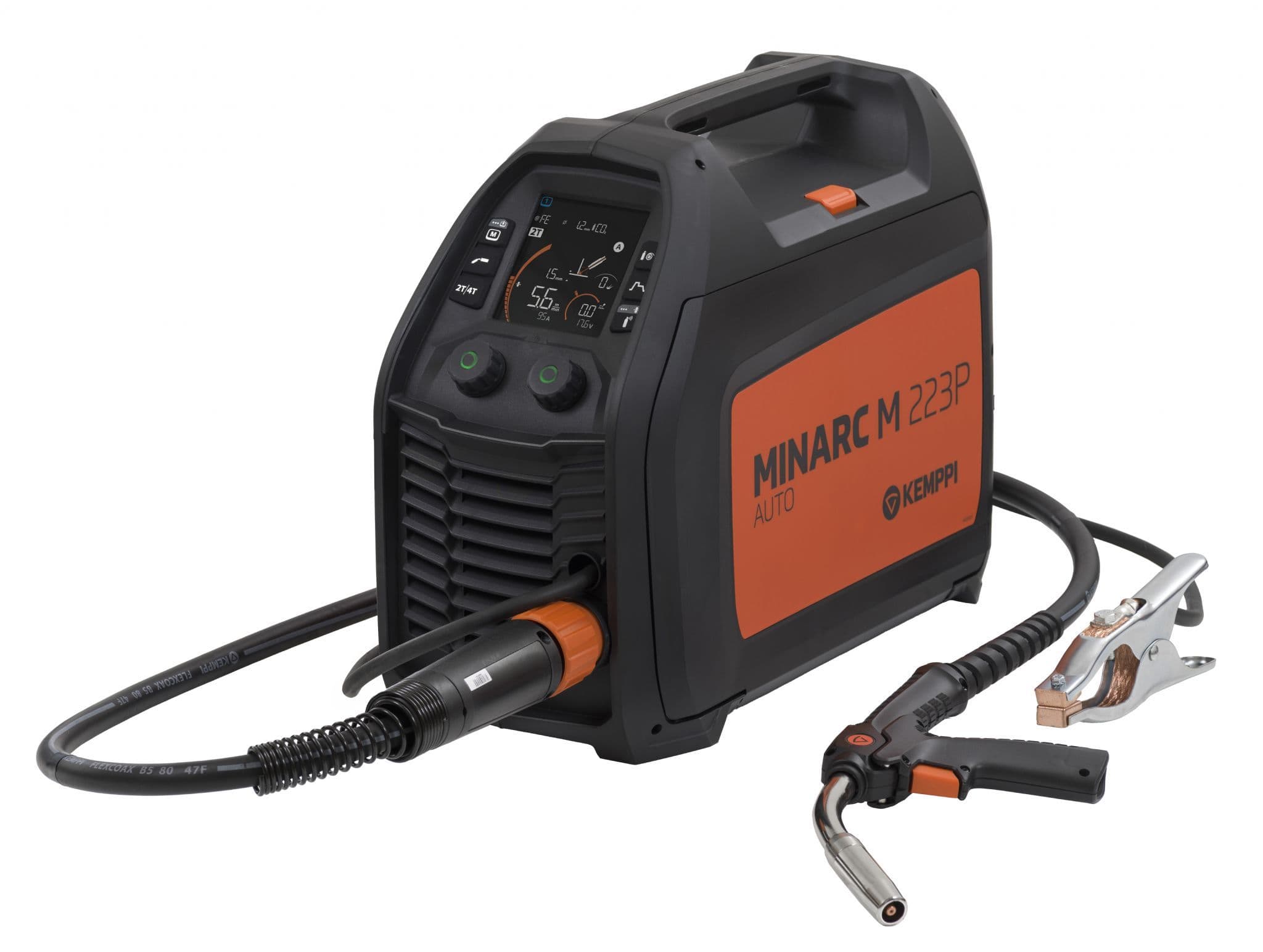

Kemppi Minarc M 223 Pulse Auto 110/230V

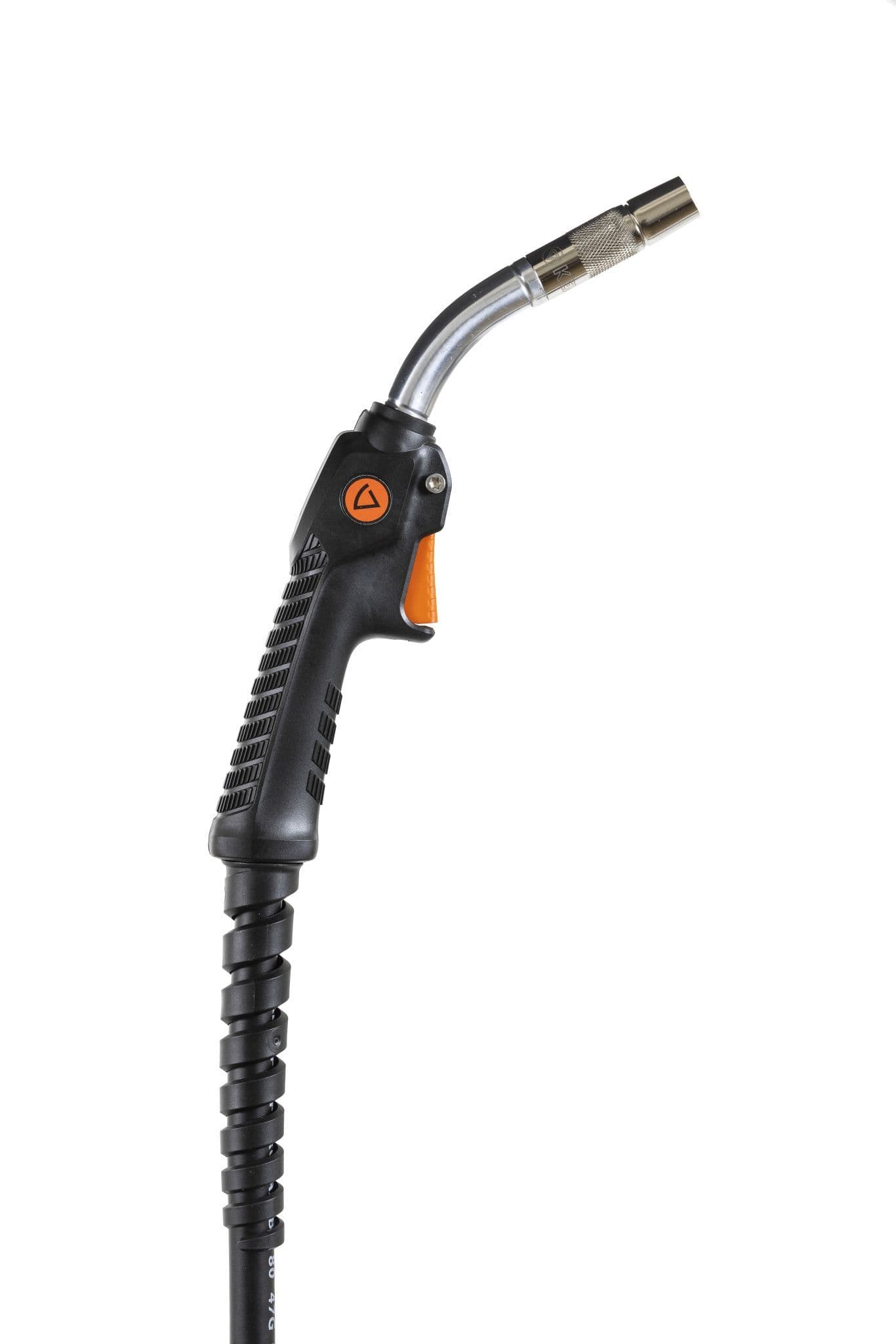

All packages include Kemppi mig torch, earth lead, gas hose, 0.8mm 5kg SG2 mig wire, welding gloves, torch consumables starter kit,  anti-spatter spray, tip dip, mig pliers and fitted with 16amp blue plug with 13amp whip lead.

Exceed expectations with Kemppi’s Minarc M: the small but mighty MIG.

Minarc M is a single-phase 110V/230V MIG/MAG machine that delivers serious power in a compact, portable package. With two models weighing just 11 and 12 kg, and up to 220 A of output, it offers one of the best power-to-weight ratios in its class. The precise digital wire feed control and wide range of filler materials & curves enable a variety of high-quality welding applications.

Built for real site treatment, Minarc M features a robust casing and a high-strength metal wire-feeder mechanism. Designed to get you welding fast; thanks to a large, easy-read display and clean controls that keep setup simple and downtime to a minimum.

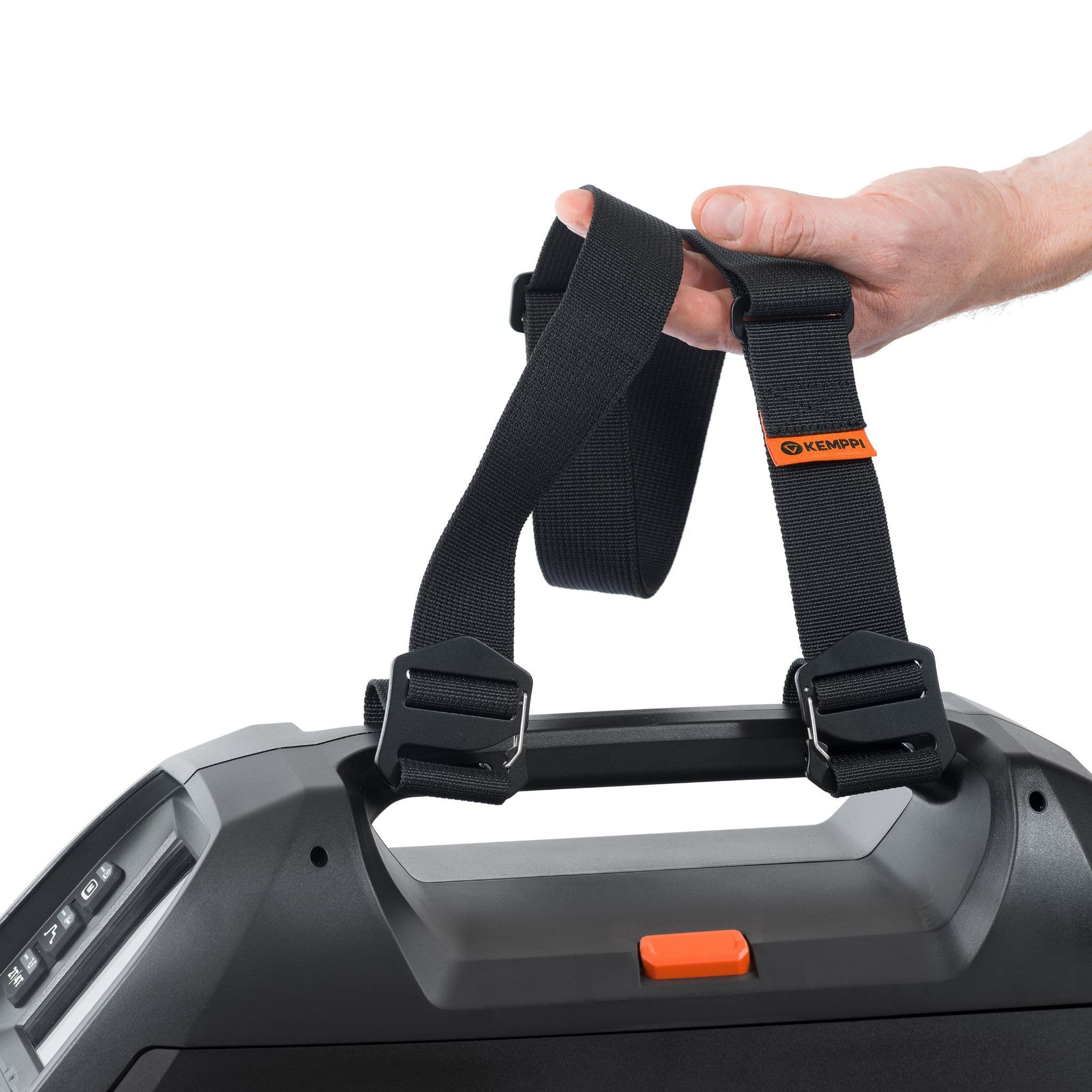

Need more cooling control and process versatility? The Minarc M 223P steps up with pulse welding capability, a Euro-connector, and an optional cooler which is ideal for fabrication environments where consistency and finish quality are non-negotiable. Both models come as a ready-to-weld package with the power source, gas hose, drive rolls, shoulder strap, earth return, power cable, separate pistol grip and gun package.

Main Features

• Powerful 220 Amps MIG/MAG PFC, 1-phase, 110V/120V and 220V/240V
• Professional welding quality – Digital arc control
• Extensive welding program menu for Fe, Ss, Al, CuSi, Flux cored & Gasless filler wires 0.6/0.8/0.9/1.0/1.2
• Euro-connector and pulse (M 223P models)
• Water cooler option Minarc Cooler 05
• Five memory channels

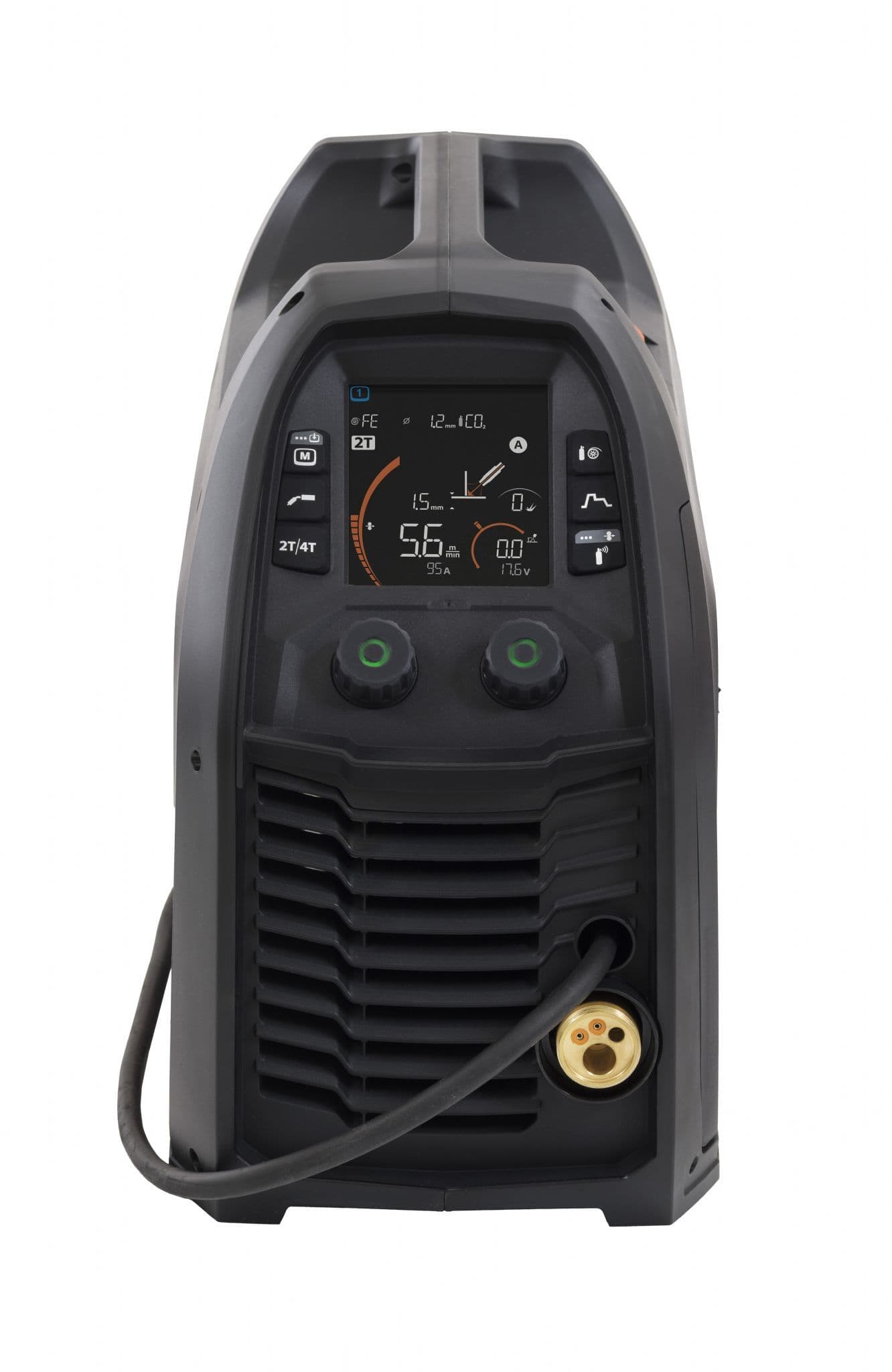

• Colour LCD graphical guidance display
• Wire inch, Gas purge, Hot start, Crater fill, Post Current features included

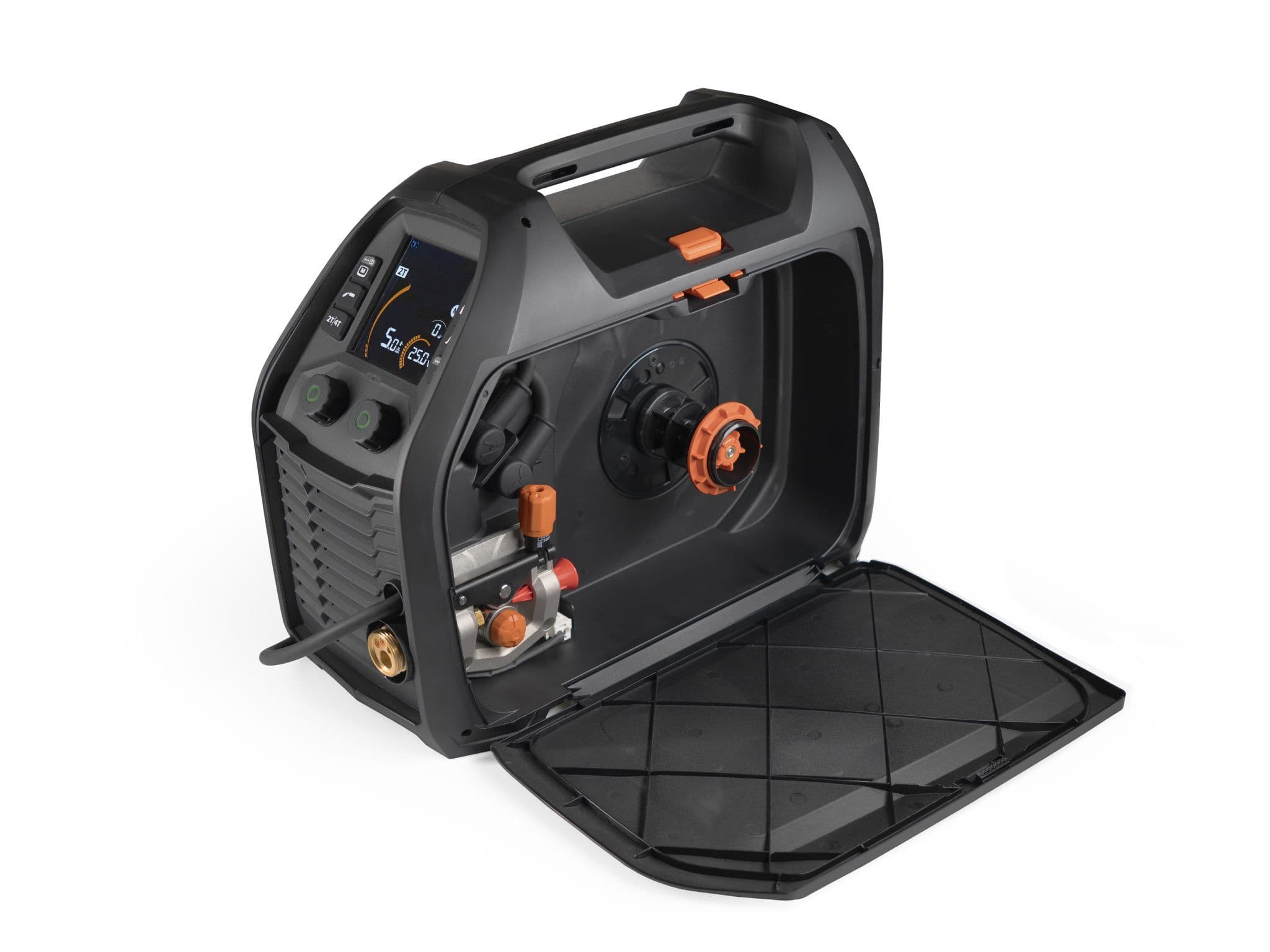

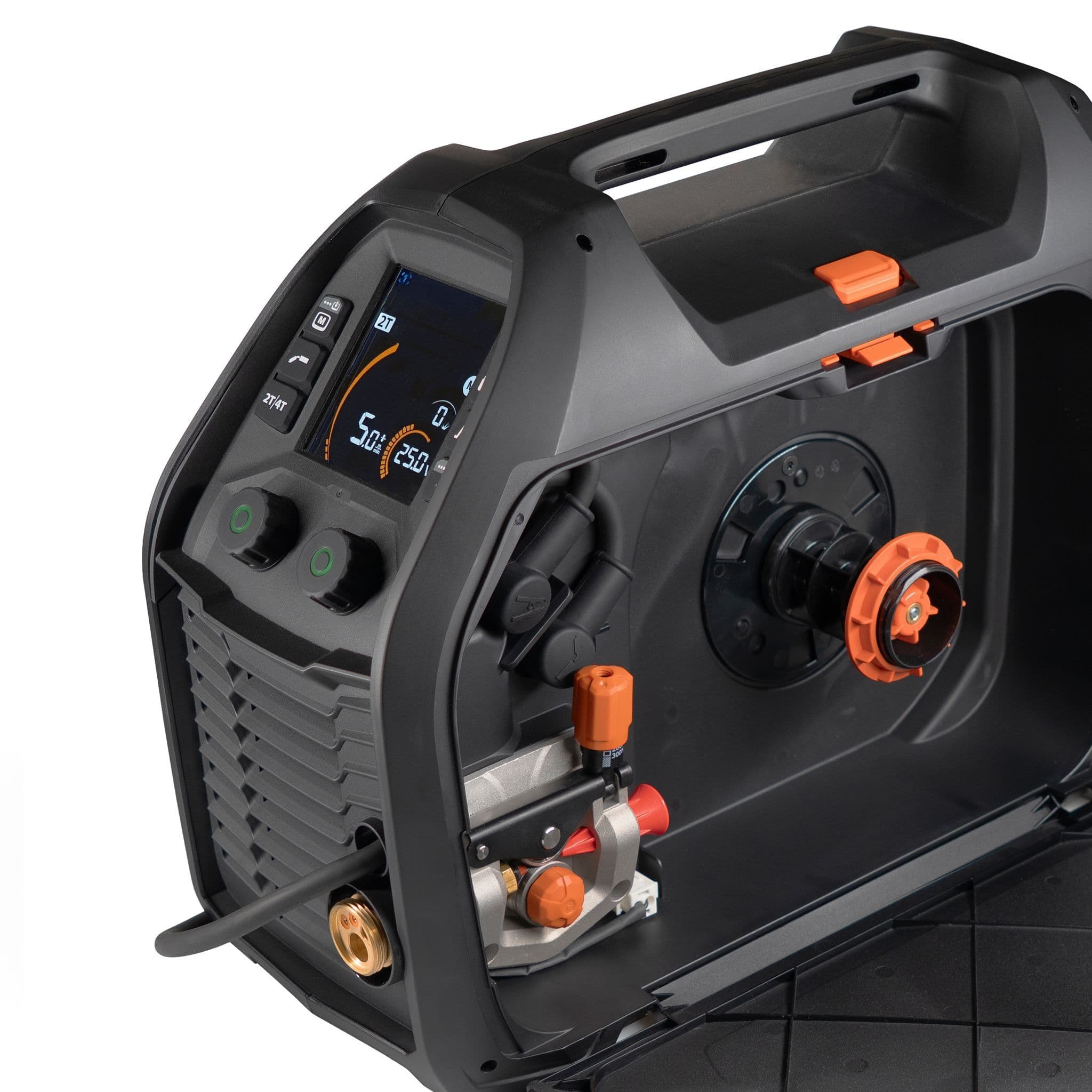

• Durable all metal wire drive chassis and twin groove drive roll
• Suitable for use with long power cables up to 100 m
• Strong, robust and light weight
• Two cart options MST400 and T22M
• Ready to weld sales package
• Reliable Finnish quality
