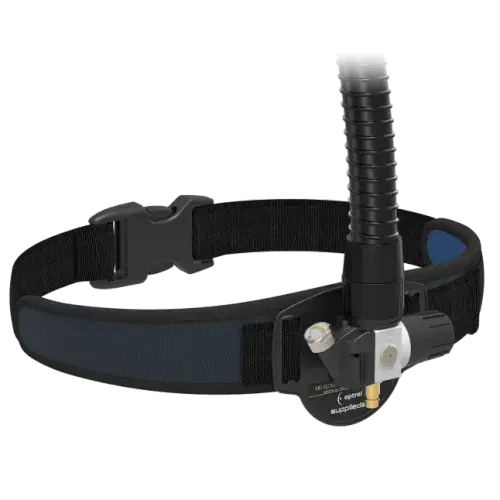

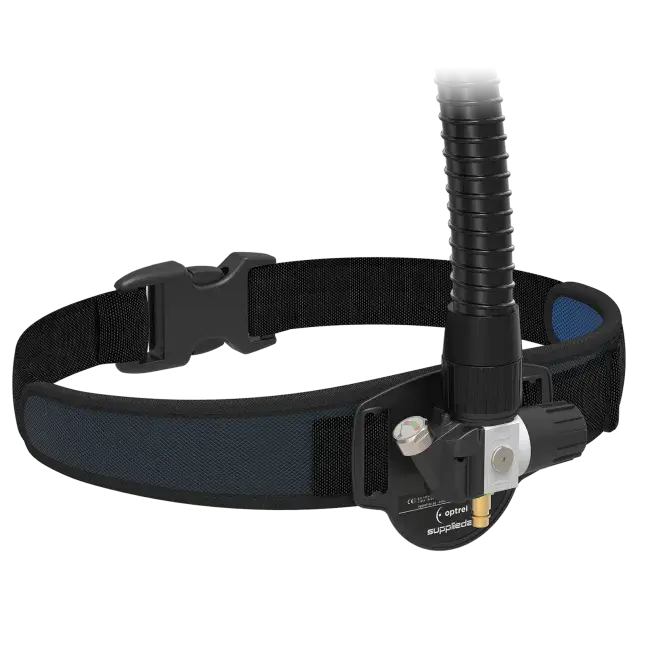

Optrel SuppliedAir Comfort Standard System - 4090.000

Introduction

The Optrel 4090.000 SuppliedAir Comfort Standard System is a compressed-air respiratory protection solution designed for use with Optrel fresh air helmets. Acting as the interface between a clean compressed air source and the user's helmet, it delivers a constant supply of breathable air for work in confined spaces, toxic environments and demanding industrial applications where reliable respiratory protection is essential.

Key Features

• Supplied air respiratory protection system
• Provides a continuous flow of clean breathing air
• Adjustable airflow from approximately 160-250 l/min
• Integrated low-airflow alarm function
• Comfortable adjustable belt with quick-release fastening
• Additional air filtration for enhanced protection
• Simple and reliable operation
• Compatible with Optrel PAPR welding helmets and Clearmaxx systems
• Suitable for confined spaces and high-contamination environments
• Lightweight and comfortable for extended wear

Specification

• Part Number: 4090.000
• Product Type: Supplied Air Respiratory Protection System
• Product Series: SuppliedAir Comfort
• Connection Type: Standard Rectus / CEJN Connection
• Airflow Rate: 160-250 l/min (adjustable)
• Minimum Flow Rate: 160 l/min
• Pressure Range: 4-10 bar
• Weight: Approx. 280 g
• Belt Adjustment Range: 60-150 cm
• Noise Level: Max. 70 dB(A)
• Pack Quantity: 1 Kit

Compatible Helmets/Products

• Optrel Panoramaxx Series
• Optrel Helix Series
• Optrel SphereX Series
• Optrel Clearmaxx Systems
• Compatible Optrel PAPR Welding Helmets

Package Contents

• 1 x SuppliedAir Comfort Air Control Unit
• 1 x Adjustable Comfort Belt
• 1 x Flow Meter
• 1 x Air Hose to Helmet
• 1 x Rectus Air Connector Fitting
• 1 x User Instructions
