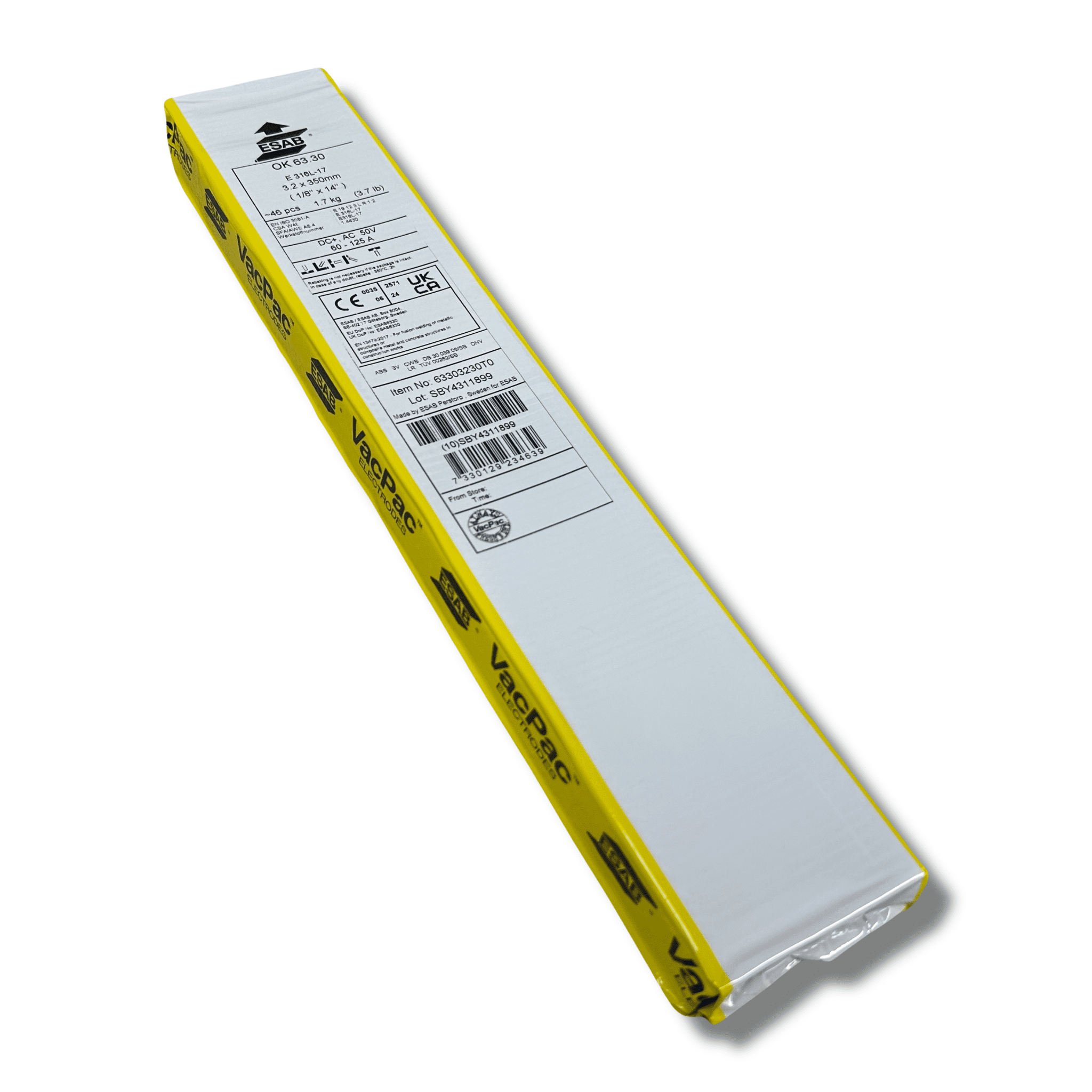

ESAB Home / Shop By Brand / ESAB / ESAB OK 63.30 316 3.2mm X 350mm VP 1.7KG ESAB OK 63.30 316 3.2mm X 350mm VP 1.7KG ESAB OK 63.30 316 3.2mm X 350mm VP 1.7KG £67.50 £81.00 (inc. VAT) Stock Status: In Stock Add to your Wish List Description ESAB OK 63.30 316 3.2MM X 350MM VP 1.7KG Sold as individual 1.7kg Vac Pac Extra low carbon stainless steel electrode for welding steels of the 18Cr 12Ni 2.8Mo-type. Also suitable for welding of stabilized stainless steels of similar composition, except when the full creep resistance of the base metal is to be met. Specifications Classifications EN ISO 3581-A : E 19 12 3 L R 1 2 SFA/AWS A5.4 : E316L-17 CSA W48 : E316L-17 Werkstoffnummer : 1.4430 Approvals ABS : E316L-17 BV : 316L CE : EN 13479 CWB : E316L-17 DB : 30.039.06 DNV-GL : VL 316 L LR : 316L UKCA : EN 13479 VdTÜV : 00262 Approvals are based on factory location. Please contact ESAB for more information. Welding Current DC+, AC Ferrite Content FN 3-10 Alloy Type Austenitic CrNiMo Coating Type Acid Rutile Min AC OCV 50 Approvals are based on factory location. Please contact ESAB for more information. Typical Tensile Properties Condition Yield Strength Tensile Strength Elongation ISO As Welded 460 MPa 570 MPa 40 % Deposition Data Diameter Current Voltage Efficiency (%) Fusion time per electrode at 90% I max Deposition Rate 1.6 x 300 mm 30-45 A 29 V 56 % 37 sec 0.4 kg/h Typical Weld Metal Analysis % C Mn Si Ni Cr Mo N FN WRC-92 0.02 0.6 0.8 11.0 18.1 2.6 0.10 6 Reviews Customer reviews No reviews left yet Write a review Sort byMost RecentTop Rated No reviews have been left for this product, be the first to leave a review Attributes MPN: 63303230T0 Brand: ESAB Product Code: ES63303230T0
