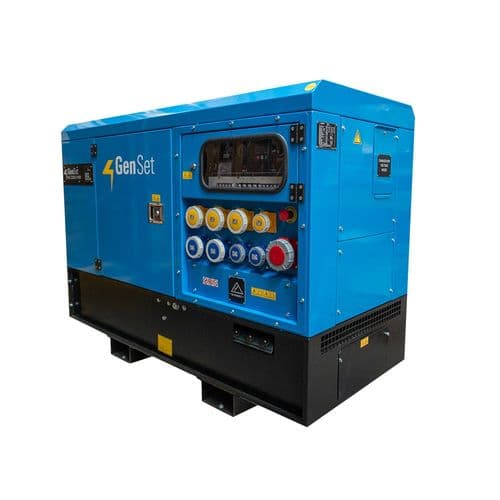

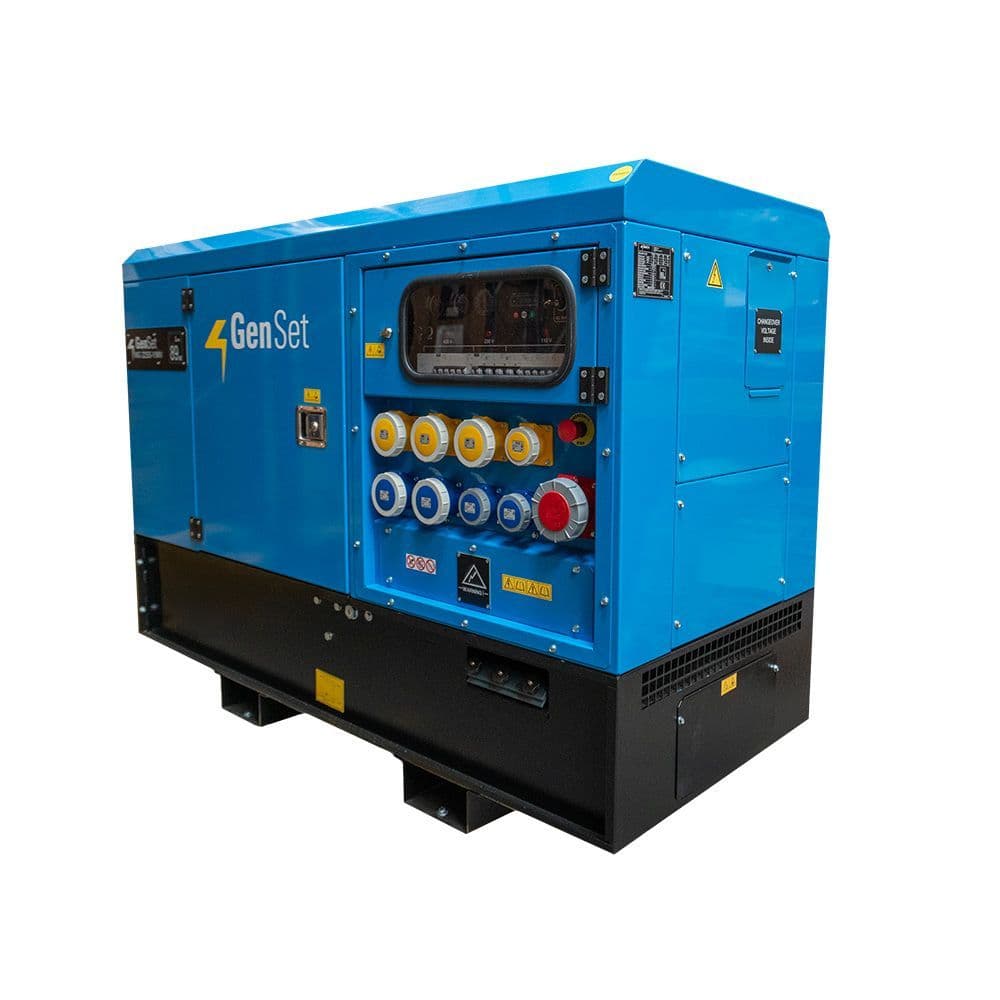

GenSet 22 kVA MV Power Generator 400V/230V/110V 1500rpm Silenced Yanmar 4TNV88 Diesel Engine

Minimal Maintenance Diesel Generator with Digital Monitoring

This compact diesel generator is designed for reliable performance, long running times, and frequent handling on site. Powered by a dependable Yanmar 1500 RPM engine, it is well suited for commercial, industrial, and site applications where efficient and consistent power is required.

The generator is equipped with a digital controller for full monitoring of key generator parameters, including generator voltage, frequency, battery voltage, and running hours. It also includes an automatic engine protection shutdown system to help protect the unit in the event of low oil pressure, high coolant temperature, low fuel level, over voltage, or under frequency.

Built for safe operation and practical day-to-day use, the unit features an emergency stop button, starting battery, water temperature gauge, oil pressure gauge, fuel level gauge, battery switch, remote control connection, engine oil drain pipe, three-way valve, voltage selector switch, earth leakage circuit breaker, hard wire facility, forklift pockets, and a lifting hook for easy handling and positioning.

Features:

• Yanmar 1500 RPM engine
• Compact design with minimal maintenance requirements
• Long running time
• Designed for automatic starting and frequent handling
• Digital controller with full generator parameter monitoring
• Monitors generator voltage, generator frequency, battery voltage, and running hours
• Automatic engine protection shutdown system
• Protection for low oil pressure, high coolant temperature, low fuel level, over voltage, and under frequency
• Emergency stop button
• Starting battery
• Water temperature gauge
• Oil pressure gauge
• Fuel level gauge
• Battery switch
• Remote control connection
• Engine oil drain pipe
• Three-way valve
• 110/230/400V selector switch
• 1 x 63A 400V three-phase socket
• 2 x 32A 230V sockets
• 2 x 16A 230V sockets
• 3 x 32A 110V sockets
• 1 x 16A 110V socket
• Earth leakage circuit breaker (ELCB)
• Power output protection
• Hard wire facility – 230/400V
• Forklift pockets
• Lifting hook

Noise Level (LWA) 89 (64dB a 7m)
AC Generator 50Hz Synchronous
Three Phase Max. Power 22kVA - 400V
Single Phase Max. Power 12kVA - 230V
Single Phase Max. Power 12kVA - 110V
Power Factor Cos Ф 0.8
Yanmar Engine 4 TNV 88
Fuel Diesel
No. Cylinders 4
Power 24.1HP (18kWm)
Displacement 2190cm3
Cooling System Water
Starting System Electric
Fuel Tank Capacity 135l
Fuel Consumption @ 75% 3.5l/h
Insulation Class H
Ambient Temperature 40oC
Altitude 1000m
Degree of Protection IP23
Dimensions (LxWxH) 1821 x 819 x 1310mm
Dry Weight 843Kg
