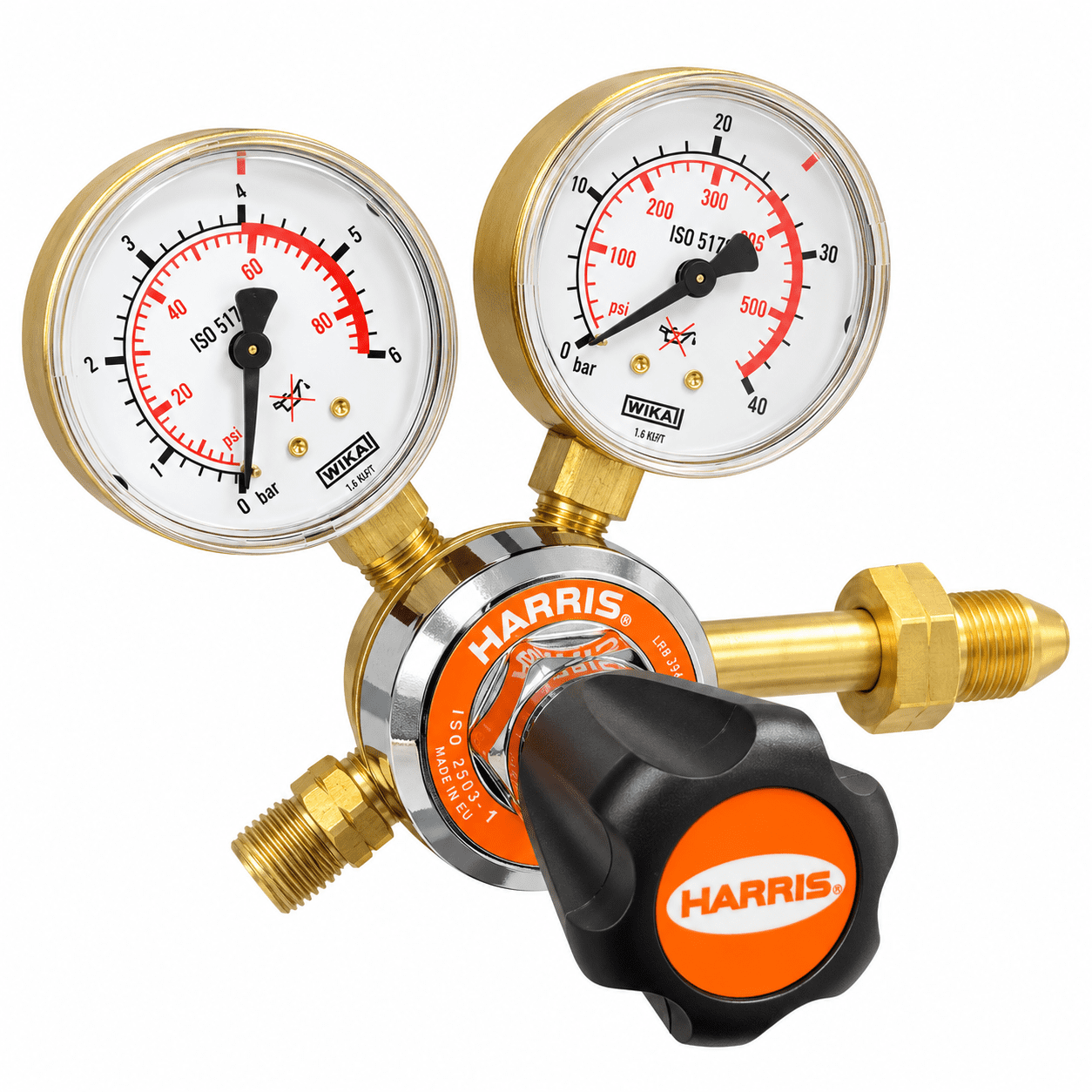

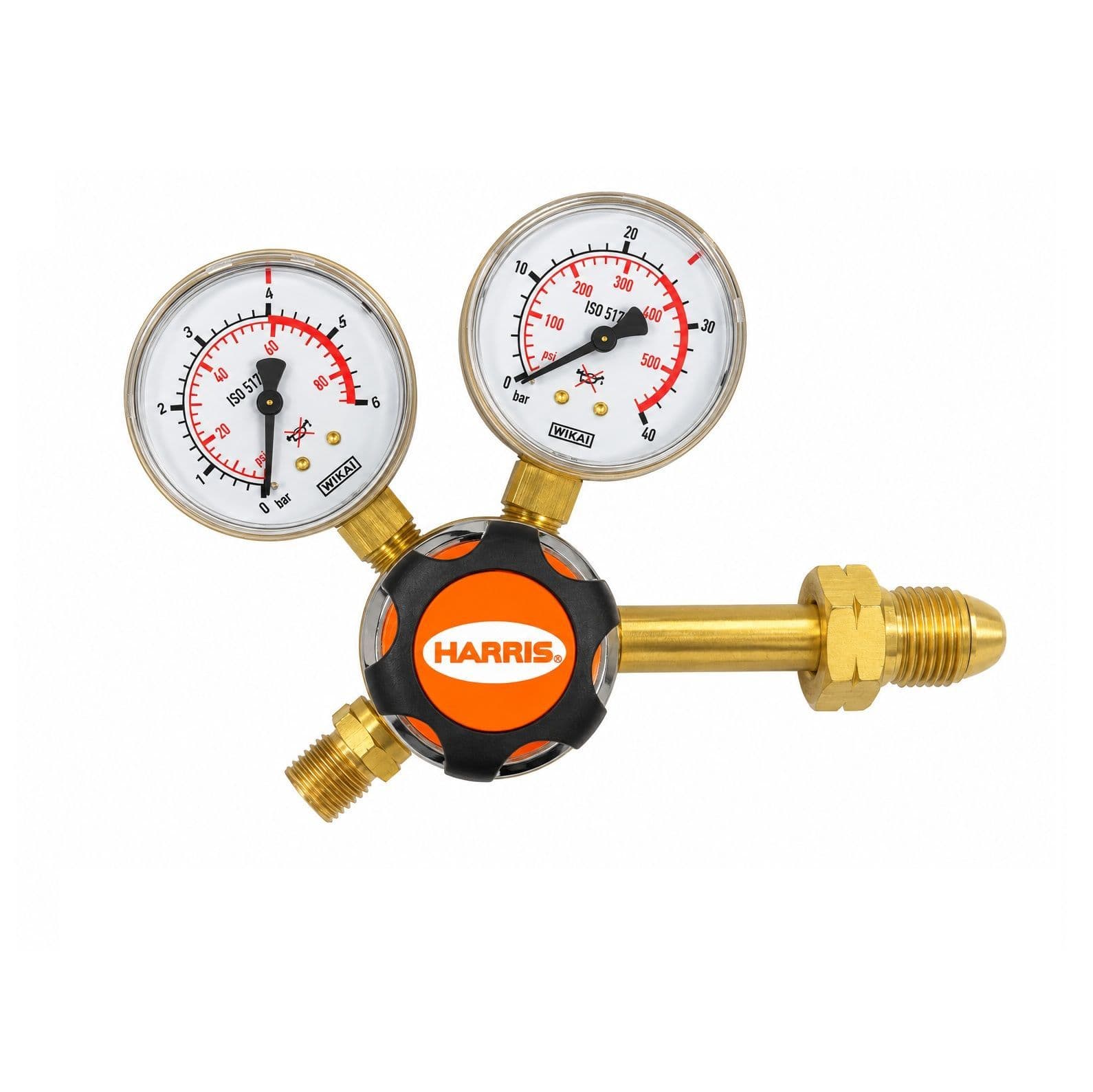

Harris 801 Propane Single-Stage Two-Gauge Regulator – 4.0 bar, 5/8" BSP LH Cylinder Connection, 3/8" BSP Outlet (UK Fitting Only)
Product codes: 3001927 / H1384

Applications

• Suitable for medium-duty cutting, heating and welding applications

Key Features

• Maximum inlet pressure: 25 bar
• Provides sufficient flow for cutting steel up to 300 mm thick
• Smooth, precise pressure adjustment
• One-piece encapsulated seat design with an internal filter and PTFE (Teflon®*) seat
• Side-entry inlet connection
• Standard version supplied with a chrome-plated bonnet and gold-painted gauge case

Technical Specifications

Gas: Propane

Maximum inlet pressure (bar): 25

Delivery pressure (bar): 0–4

Maximum gas flow (m³/h): 16.5

Delivery pressure gauge (bar): 0–6

Supply pressure gauge (bar): 0–40
